SYSTEM, RO, LP-500, AXEON

Part #: 209349 / 209439
Voltage
Login / Register

The AXEON LP-500 Reverse Osmosis System is designed for light commercial and specialty water treatment applications requiring higher daily production in a compact, efficient system. With a nominal capacity of 500 gallons per day, this unit is ideal for food service, laboratories, hydroponics, ice machines, and other point-of-use or small commercial installations.

The LP-500 features a multi-stage filtration process that includes sediment and carbon pre-filtration to protect the RO membrane, followed by a high-rejection reverse osmosis membrane for effective dissolved solids reduction. Its streamlined design allows for straightforward installation, easy servicing, and consistent long-term performance.

(The LP-Series models can also be upgraded with an optional cover that includes pressure gauges and a dual TDS meter.)



Features:

  • 500 GPD nominal production capacity
  • Multi-stage reverse osmosis filtration
  • Sediment and carbon pre-filtration
  • High-rejection RO membrane Compact, space-efficient design
  • Reliable and consistent performance
  • Easy installation and maintenance
  • Ideal for light commercial and specialty applications

        Model: LP-500

        AXEON Part Number: 209349

        Capacity (gpd): 500

        Configuration: Single Pass

        Feedwater Source: TDS <500 ppm

        Standard Recovery Rate %: 46

        Permeate Flow (gpm): 0.35

        Minimum Feed Flow (gpm): 0.76

        Feed (in): 3/8" QC

        Permeate (in): 3/8" QC

        Concentrate (in): 3/8" QC

        Membrane(s) Per Vessel: 1

        Membrane Quantity: 1

        Membrane Size: 3012

        Nominal Salt Rejection %: 98

        Vessel Array: 1

        Vessel Quantity: 1

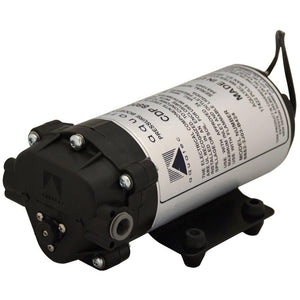

        Pump Type: Auqatec 5800

        Standard Voltage + Amp Draw: 110V, 50 / 60Hz, 1PH, 4A / 220V, 50 / 60Hz, 1PH

        Warranty: 1-Year
