Commercial and Industrial Flow Meters

Flow meters deliver precise measurement and monitoring capabilities for water treatment and filtration applications. These industrial-grade instruments feature panel mount and inline configurations engineered for optimal performance across diverse flow ranges.

Advanced Flow Monitoring Technology

The comprehensive flow meter line incorporates precision-engineered components for accurate flow rate monitoring from ultra-low flows of 0.1 GPM to high-capacity applications of 45 GPM. Each meter utilizes advanced stainless steel construction, with SS 316 and SS 304 materials ensuring maximum durability and corrosion resistance.

Key Design Features

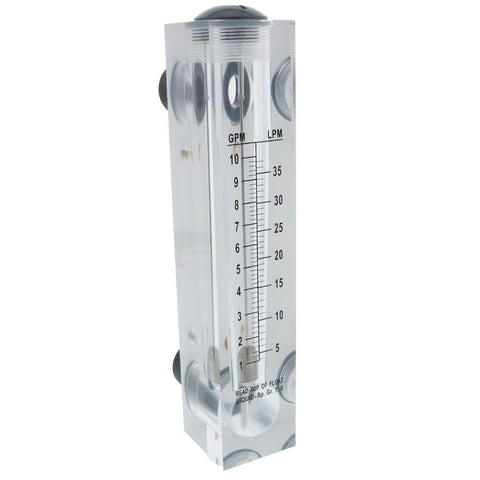

• Solid one-piece injection molded acrylic body with permanent screen-printed scales
• Dual scale indicators in GPM/LPM or GPH/LPH formats
• Stainless steel float and internal components for reliable operation
• NPT connection options ranging from 1/4" to 2" to accommodate various pipe sizes

Performance Specifications

• Maximum operating pressure: 125 psi
• Temperature rating: 120°F
• Measurement accuracy: ±5%
• Individual testing ensures calibration precision

The flow meters integrate seamlessly into water treatment systems through standardized NPT connections, enabling straightforward installation and maintenance. Their rugged construction and precise measurement and monitoring capabilities make them ideal for commercial and industrial applications requiring reliable flow monitoring.

Commercial & Industrial Flow Meter Applications

Flow meters serve critical functions across commercial and industrial water treatment applications, delivering essential monitoring capabilities for process control and system optimization.

Advanced Water Treatment Applications

Precise flow measurement enables optimal performance in reverse osmosis systems through real-time monitoring of permeate, concentrate, and feed water flows. The panel mount and inline configurations provide accurate flow rate data from 0.1 GPM to 45 GPM to maintain proper system recovery ratios and membrane performance.

Process Control Integration

The flow meters' stainless steel construction and NPT connections allow seamless integration into water treatment processes requiring:

• Feed water flow verification
• Concentrate stream monitoring
• Permeate production tracking
• Chemical dosing control

Performance Optimization Features

Dual-scale indicators in GPM/LPM formats enable precise flow measurement for:

• System balancing
• Recovery rate adjustment
• Membrane flux monitoring
• Production capacity verification

The rugged acrylic and stainless steel construction ensures reliable operation in demanding industrial environments while maintaining measurement accuracy within ±5% across the full flow range. This enables water treatment system operators to optimize performance through data-driven adjustments and preventive maintenance.

Technical Specifications for Industrial Flow Meters

The flow meter product line delivers comprehensive measurement capabilities through precision-engineered components and robust materials. Each meter undergoes individual testing to ensure accurate performance across its operational range.

Flow Measurement Range

The meters provide precise monitoring from ultra-low flows of 0.1 GPM to high-capacity applications of 45 GPM, enabling optimal control across diverse water treatment processes. The dual-scale indicators display measurements in both GPM/LPM formats for versatile monitoring capabilities.

Connection Configurations

Multiple NPT connection options accommodate various installation requirements:

• MNPT sizes: 1/4" to 2" for feed and discharge ports
• FNPT sizes: 1/4" to 2" for inlet and outlet connections
• Standardized threading ensures compatibility with existing piping systems

Material Construction

Premium materials ensure durability and chemical resistance:

• SS 316 construction for maximum corrosion resistance
• SS 304 components for standard industrial applications
• Solid acrylic body with permanent screen-printed scales
• Silastic O-ring seals for reliable operation

Installation Options

Versatile mounting configurations support diverse application needs:

• Panel mount design with integrated mounting brackets
• Inline installation for direct pipe integration
• Vertical or horizontal orientation capability
• Multiple connection sizes for system compatibility

The meters maintain measurement accuracy within ±5% while operating at pressures up to 125 psi and temperatures up to 120°F, ensuring reliable performance in demanding industrial environments.

Flow Meter Technologies & Features

Panel mount flow meters incorporate precision-engineered components for accurate monitoring across diverse water treatment applications. The solid one-piece injection molded acrylic body features permanent screen-printed scales with dual GPM/LPM indicators for reliable measurement readings.

Panel Mount Capabilities

The meters utilize 316L stainless steel floats and internal components, ensuring maximum durability in demanding environments. Integrated stainless steel valves provide precise flow control while maintaining measurement accuracy within ±5% across the full operating range.

Installation Versatility

Multiple mounting configurations accommodate various system requirements:

• Vertical or horizontal orientation options
• Panel mount brackets for secure installation
• NPT connections from 1/4" to 2" sizes

Advanced Inline Series Design

Inline flow meters feature direct pipe integration for simplified installation and maintenance. The rugged construction incorporates:

• Bi-directional flow measurement capability
• Maximum operating pressure of 150 psi
• Temperature rating up to 120°F

Performance Features

The inline series delivers reliable operation through:

• Stainless steel internal components
• Polypropylene connections
• Silicone O-ring seals
• Individual accuracy testing

The combination of durable materials and precision engineering ensures consistent performance in commercial and industrial water treatment applications requiring accurate flow monitoring and control.

Flow Meter Selection Guide

The comprehensive flow meter range delivers precise measurement capabilities across ultra-low to high-capacity applications. Each meter undergoes individual testing to ensure ±5% accuracy across its operational range.

Ultra Low Flow Applications

Panel mount flow meters with 316L stainless steel components enable precise monitoring for critical processes:

• 1-1 GPM meters feature dual GPM/LPM scales for sensitive flow detection
• 2-2 GPM configurations provide accurate measurements for small-volume systems
• 5-5 GPM units optimize performance through real-time flow verification

Standard Flow Applications

Industrial-grade flow meters incorporate rugged construction for demanding environments:

• 1-10 GPM meters utilize 1" MNPT connections for commercial water treatment
• 2-20 GPM units feature integrated stainless steel valves for process control
• 5-45 GPM systems enable monitoring of high-volume industrial applications

The flow meters maintain measurement accuracy while operating at pressures up to 125 psi and temperatures up to 120°F. Stainless steel floats and internals ensure reliable operation, while permanent screen-printed scales provide clear flow rate indication.

Installation & Maintenance

The flow meters incorporate versatile mounting configurations and maintenance-friendly design features for optimal performance in water treatment applications. The solid one-piece injection molded acrylic body enables straightforward installation and servicing.

Mounting Configurations

Panel mount systems utilize integrated mounting brackets for secure installation in vertical or horizontal orientations. Direct pipe connections from 1/4" to 2" NPT accommodate various system requirements while maintaining measurement accuracy within ±5% across the flow range.

Service Access Features

The durable acrylic and stainless steel construction allows easy maintenance through:

• Removable end caps for internal cleaning
• Accessible float assemblies
• Cleanable stainless steel components
• Replaceable Silastic O-ring seals

Performance Reliability

The rugged design delivers consistent operation through:

• Maximum pressure rating of 125 psi
• Temperature capability up to 120°F
• Individual accuracy testing
• 316L stainless steel internals

Regular maintenance intervals of 6-12 months ensure reliable flow measurement and control in demanding industrial environments. The serviceable components and durable materials minimize downtime while maintaining measurement precision for water treatment system optimization.

Quality Assurance Standards

Flow meter manufacturing incorporates ISO:9001-certified processes and Six Sigma controls to ensure consistent product quality. Each meter undergoes comprehensive testing protocols verifying flow accuracy, pressure capability, and material integrity before shipment.

Production Excellence

USA-based manufacturing facilities utilize:

• Precision CNC machining
• Automated assembly systems
• Individual calibration verification
• Multi-point quality inspection

Performance Validation

Quality control procedures verify:

• Flow measurement accuracy within ±5%
• Pressure ratings up to 125 psi
• Temperature capability to 120°F
• Material specifications compliance

Technical Support Services

Factory-trained specialists provide comprehensive product support through:

• System design consultation
• Installation specifications
• Flow rate optimization
• Maintenance procedures

Application Engineering

Technical services include:

• Flow meter sizing
• Connection specification
• Mounting configuration
• Performance verification

The support team delivers rapid response for maintenance requirements and system optimization needs. Direct access to engineering resources ensures proper flow meter selection and installation for optimal water treatment system performance.

Delivering Quality Flow Measurement Solutions

AXEON Supply stands as an industry leader in flow meter technology, providing precision-engineered solutions for water treatment and filtration applications. Our comprehensive product line delivers reliable performance through advanced stainless steel construction, precise measurement capabilities from 0.1 GPM to 45 GPM, and versatile mounting configurations to meet diverse system requirements.

With ISO:9001-certified manufacturing processes, individual testing protocols, and dedicated technical support, AXEON flow meters represent the pinnacle of measurement accuracy and durability. Our commitment to quality engineering and customer service ensures optimal performance for your critical flow monitoring needs.

Contact our engineering team today to find the ideal flow meter solution for your specific application requirements. Trust AXEON Supply - The Watermark of Distinction in flow measurement technology.
