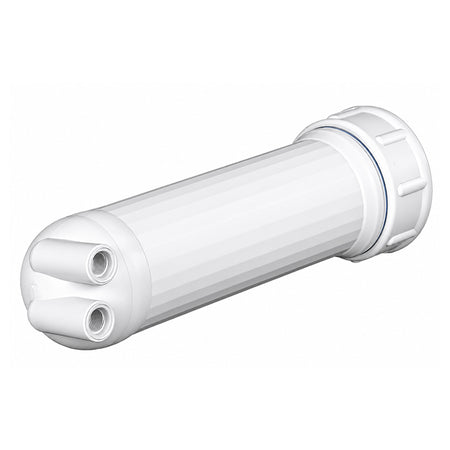

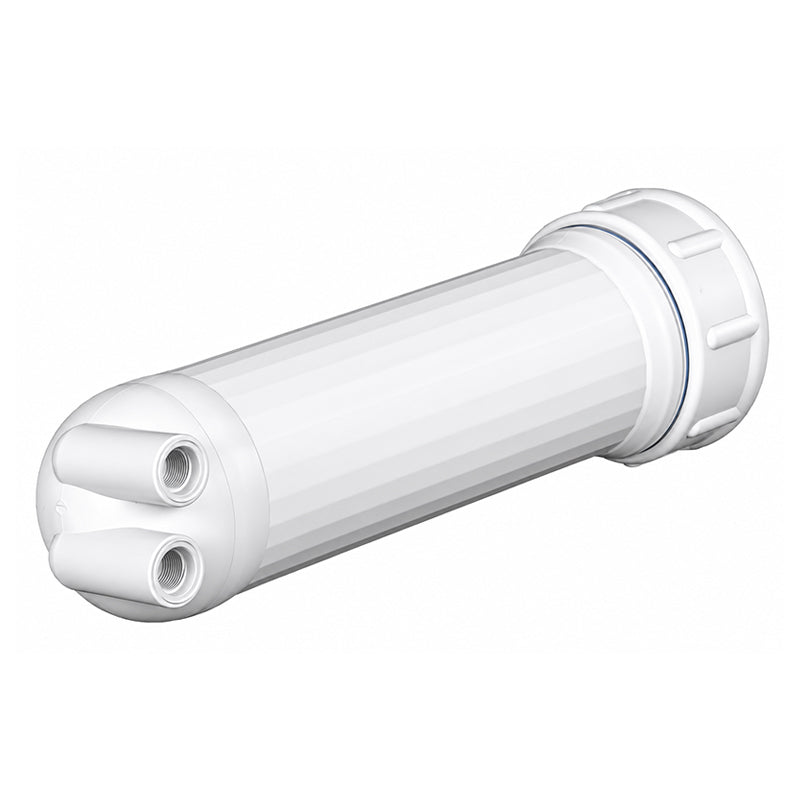

208438- HOUSING, MEMBRANE, WHT, ANGLE 3/8" FNPT, 3012, RMH, AXEON
Couldn't load pickup availability
The AXEON RMH Series 3012 Membrane Housing is designed to securely contain standard 3.0″ × 12″ reverse osmosis membrane elements in residential and light commercial RO systems. Built for dependable pressure containment and proper sealing, this housing supports consistent membrane performance and long-term system efficiency.
Engineered for compatibility with industry-standard 3012 RO membrane elements, the RMH Series housing is ideal for higher-capacity point-of-use systems and compact commercial RO units. Its durable construction allows for straightforward membrane installation and reliable operation in demanding water treatment environments.
Features:
- Test Burst Pressure: 400 psi
- Single O-ring Design
- Standard FNPT Molded Threads
- One Piece Injection Molded Cap and Housing
- Cycle Test: 150,000 Cycles at 150 psi
Model: 3012
Diameter (inch / mm): 3.00 / 50.80
Length (inch / mm): 12.00 / 304.80
Feed Connection (inch): 3/8" FNPT
Permeate Connection (inch): 3/8" FNPT
Concentrate Connection (inch): 3/8" FNPT
Maximum Operating Pressure (psi / bar): 125 / 8.62
Minimum Operating Temperature (°F / °C): 35 / 2
Maximum Operating Temperature (°F / °C): 125 / 52
AXEON Part Number: 208438
Q&A
Have a Question?
Be the first to ask a question about this.
NEED HELP?
Need help finding a replacement part? Fill out our part request form and someone will get back to you shortly. Can’t wait? You can also call our customer support line.
Additional Equipment

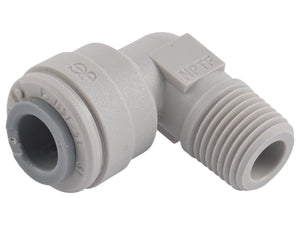

- Part #: 201075
