AXEON

200390- MEMBRANE, HF4, 4021, DRY, AXEON

Name: 200390- MEMBRANE, HF4, 4021, DRY, AXEON
Brand: AXEON
SKU: 200390
Price: 449.53 USD
Availability: InStock

Part #: 200390

Product variants

Login / Register

Description

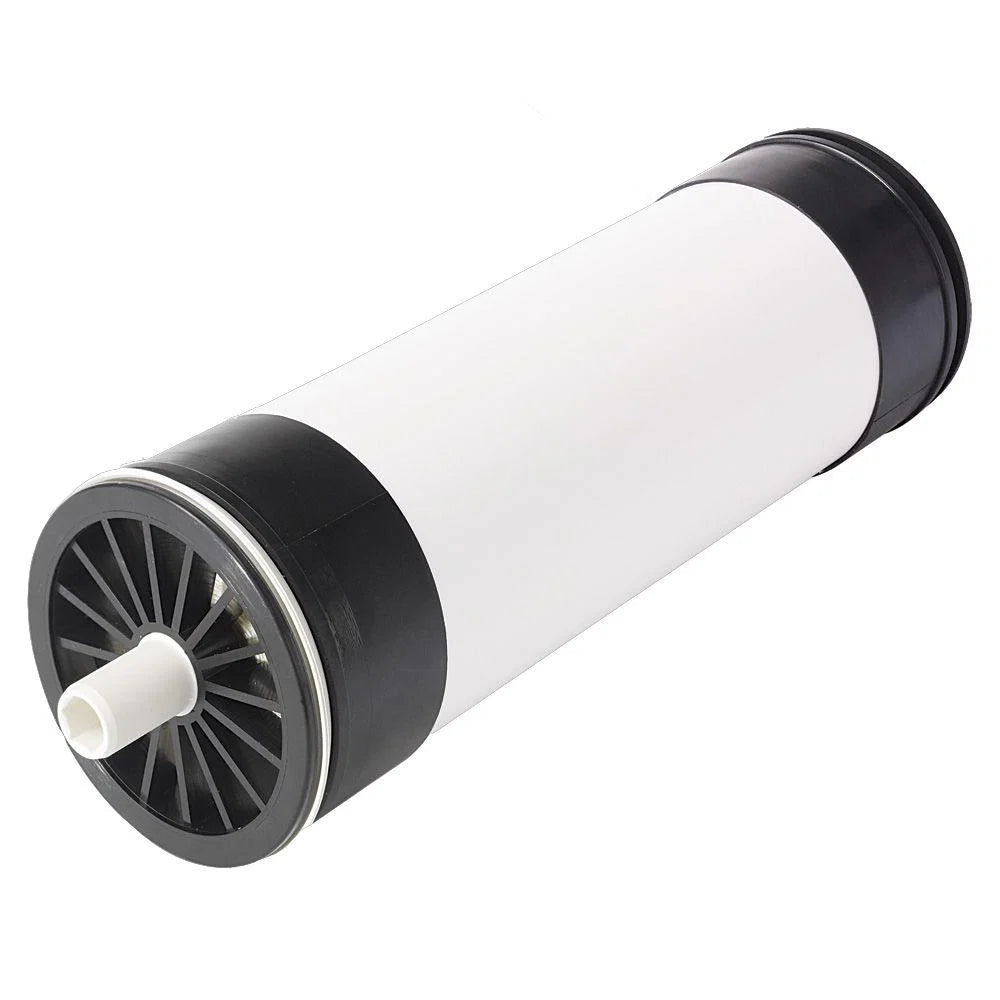

The AXEON HF4-4021 Reverse Osmosis Membrane is engineered for high-flow, high-rejection performance in commercial and light industrial reverse osmosis applications. Manufactured using advanced thin-film composite (TFC) membrane technology, this element delivers efficient dissolved solids reduction while maintaining strong permeate flow and reliable system efficiency.

Supplied in a dry-shipped configuration, the HF4-4021 provides extended shelf life and simplified storage prior to installation. Its 4.0″ × 21″ size makes it well suited for compact commercial RO systems, specialty installations, and OEM equipment requiring high-flow performance in a shorter membrane length.

Features:

High-flow reverse osmosis membrane
Dry-shipped for extended shelf life
Advanced thin-film composite (TFC) technology
High permeate output with consistent rejection
4.0″ × 21″ membrane size
Designed for commercial and light industrial RO systems
AXEON-engineered reliability and performance

Literature

Specification Sheet

specifications

Description: HF4-4021

Applied Pressure (psi / bar): 100 / 6.89

Permeate Flow Rate (gpd / m³/d): 1000 / 3.79

Nominal Salt Rejection %: 99

Membrane Type: Polyamide Thin-Film Composite

Maximum Operating Temperature (°F / °C): 113 / 45

Maximum Operating Pressure (psi / bar): 600 / 41

pH Range, Continuous Operaiton: 2 - 11

pH Range, Short Term Cleaning (30 Min.): 1 - 13

Maximum Feed Silt Density Index (SDI): 5

Chlorine / Chloramine Tolerance (ppm): 0

Maximum Feed Flow Rate (gpm): 14
