AXEON

200373- MEMBRANE, HR3, 4040, DRY, AXEON

Name: 200373- MEMBRANE, HR3, 4040, DRY, AXEON
Brand: AXEON
SKU: 200373
Price: 631.36 USD
Availability: InStock

Part #: 200373

Product variants

Login / Register

Description

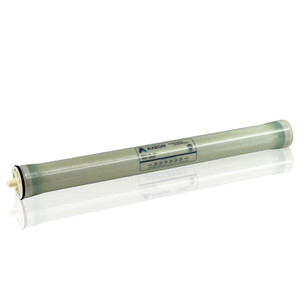

The AXEON HR3-4040 Reverse Osmosis Membrane is designed for high-rejection performance in commercial and light industrial reverse osmosis systems. Manufactured using advanced thin-film composite (TFC) membrane technology, this element delivers excellent dissolved solids reduction while maintaining consistent permeate flow and system efficiency.

Supplied in a dry-shipped configuration, the HR3-4040 offers extended shelf life and simplified storage prior to installation. Its standard 4.0″ × 40″ size ensures compatibility with a wide range of commercial RO systems and OEM equipment requiring dependable, high-purity water production.

Features:

High-rejection reverse osmosis membrane
Dry-shipped for extended shelf life
Advanced thin-film composite (TFC) technology
Consistent permeate quality and performance
Standard 4.0″ × 40″ membrane configuration
Designed for commercial and light industrial RO systems
AXEON-engineered reliability and quality

Literature

Specification Sheet

specifications

Description: HR3-4040

Applied Pressure (psi / bar): 225 / 15.51

Permeate Flow Rate (gpd / m³/d): 2200 / 8.33

Nominal Salt Rejection %: 99.5

Membrane Type: Polyamide Thin-Film Composite

Maximum Operating Temperature (°F / °C): 113 / 45

Maximum Operating Pressure (psi / bar): 600 / 41

pH Range, Continuous Operaiton: 2 - 11

pH Range, Short Term Cleaning (30 Min.): 1 - 13

Maximum Feed Silt Density Index (SDI): 5

Chlorine / Chloramine Tolerance (ppm): 0

Maximum Feed Flow Rate (gpm): 14
