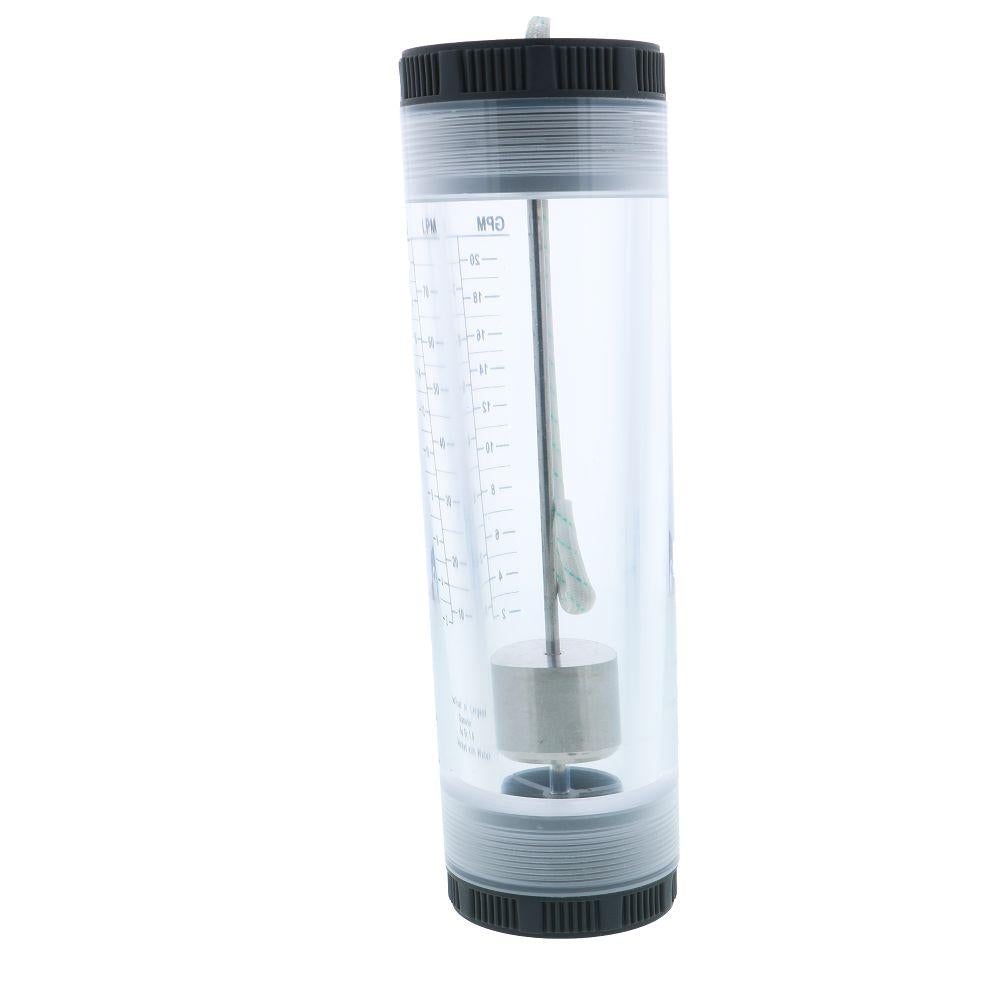

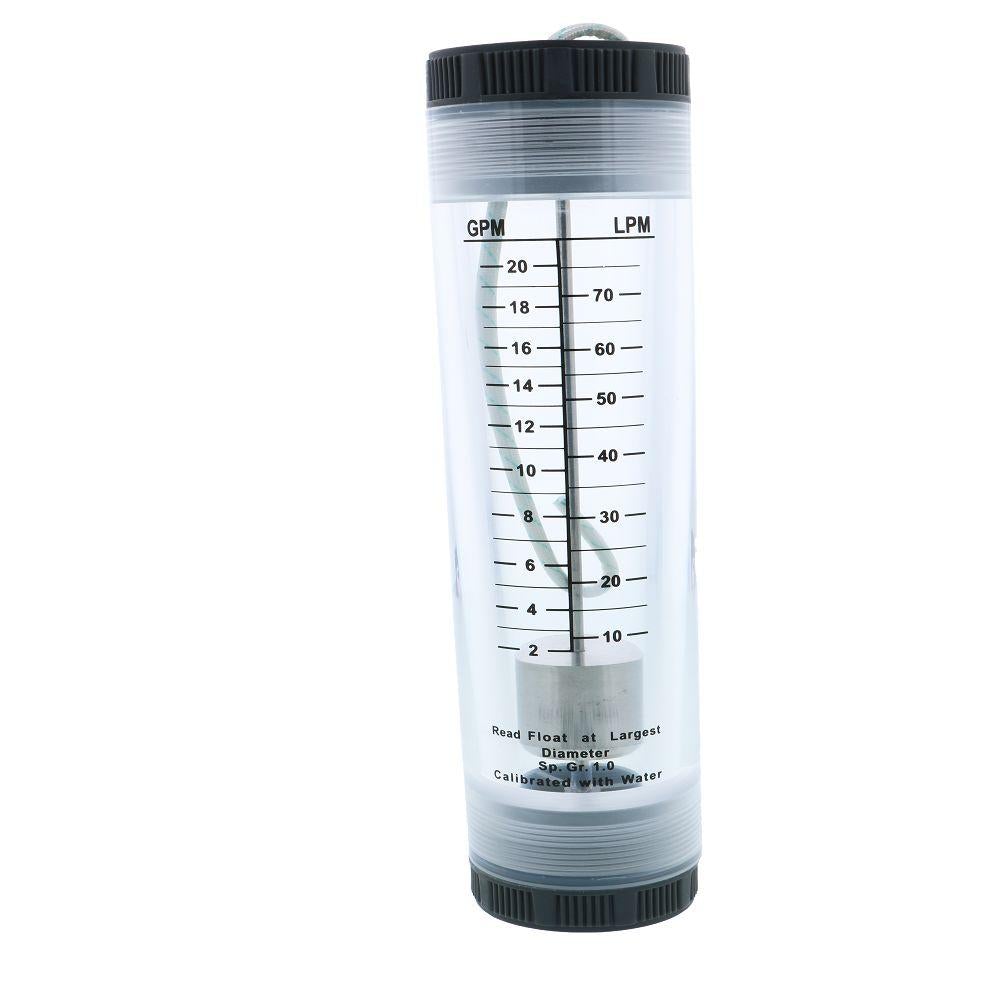

204271- METER, FLOW, IL, 1-20 GPM, 1" FNPT x 1" FNPT, AXEON
Couldn't load pickup availability
The AXEON Inline Flow Meter is designed for accurate monitoring of water flow in commercial and industrial water treatment systems. With a 1–20 GPM flow range, this meter allows operators to easily verify system performance and maintain proper operating conditions in reverse osmosis, filtration, and process water applications.
Featuring a 1″ FNPT connection, this inline flow meter provides straightforward installation and dependable operation in a wide range of system configurations. Its durable construction and clear flow scale ensure reliable visual monitoring for consistent system performance.
Features:
- Acrylic Body
- Individually Packaged
- 100% Tested for Accuracy
- Calibrations in GPM and LPM
- Solid One Piece Injection Molded
- Permanent Screen Printed Scales
- Stainless Steel Float and Internals
Body: Acrylic
O–Rings: Silicone
Connections: Polypropylene
Guide: 316L Stainless Steel
Float: 316L Stainless Steel
Maximum Pressure: 150 psi
Temperature Rating: 120°F
Accuracy: ± 4%
AXEON Part Number: 204271
