212677- SYSTEM, RO, X1-4180, COMPACT, 220V 60HZ 3PH, AXEON
Couldn't load pickup availability

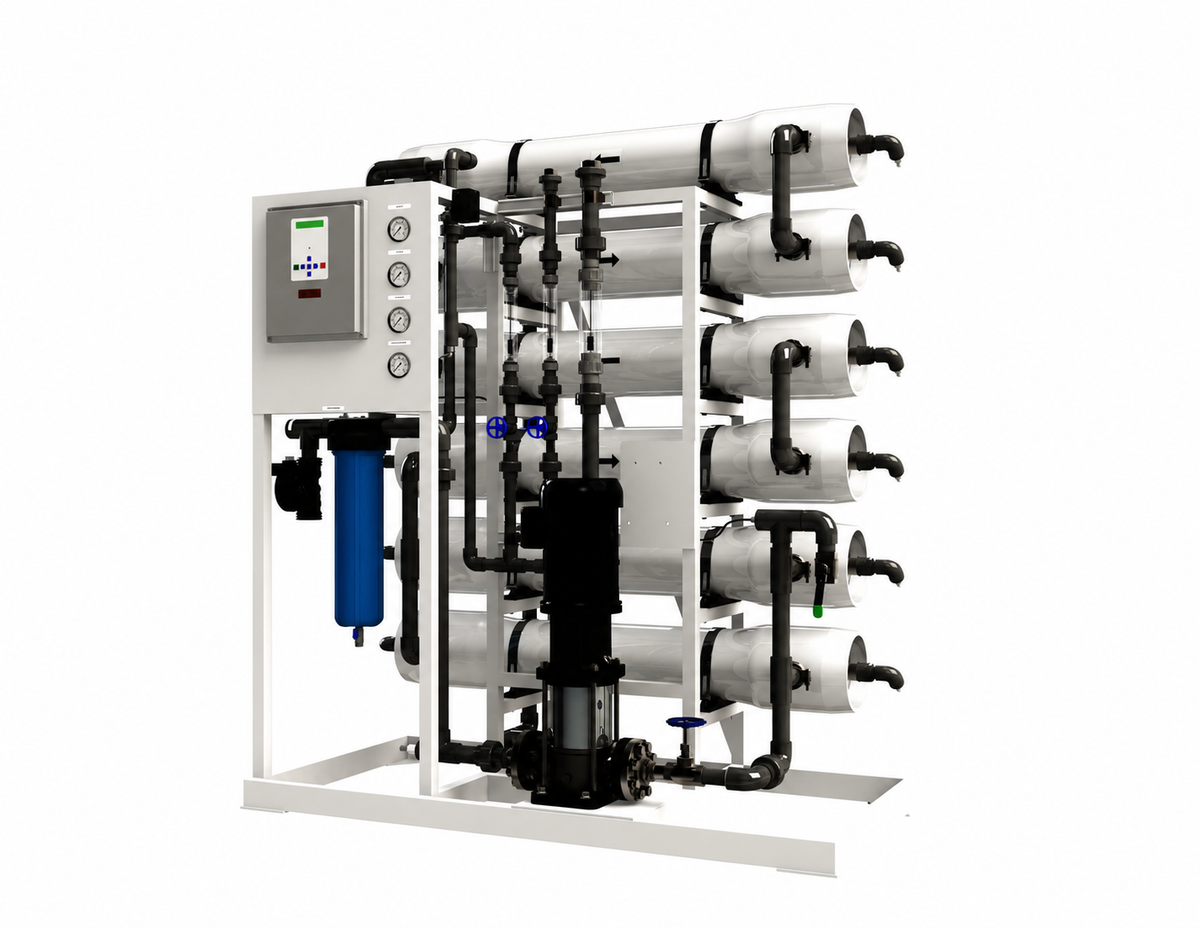

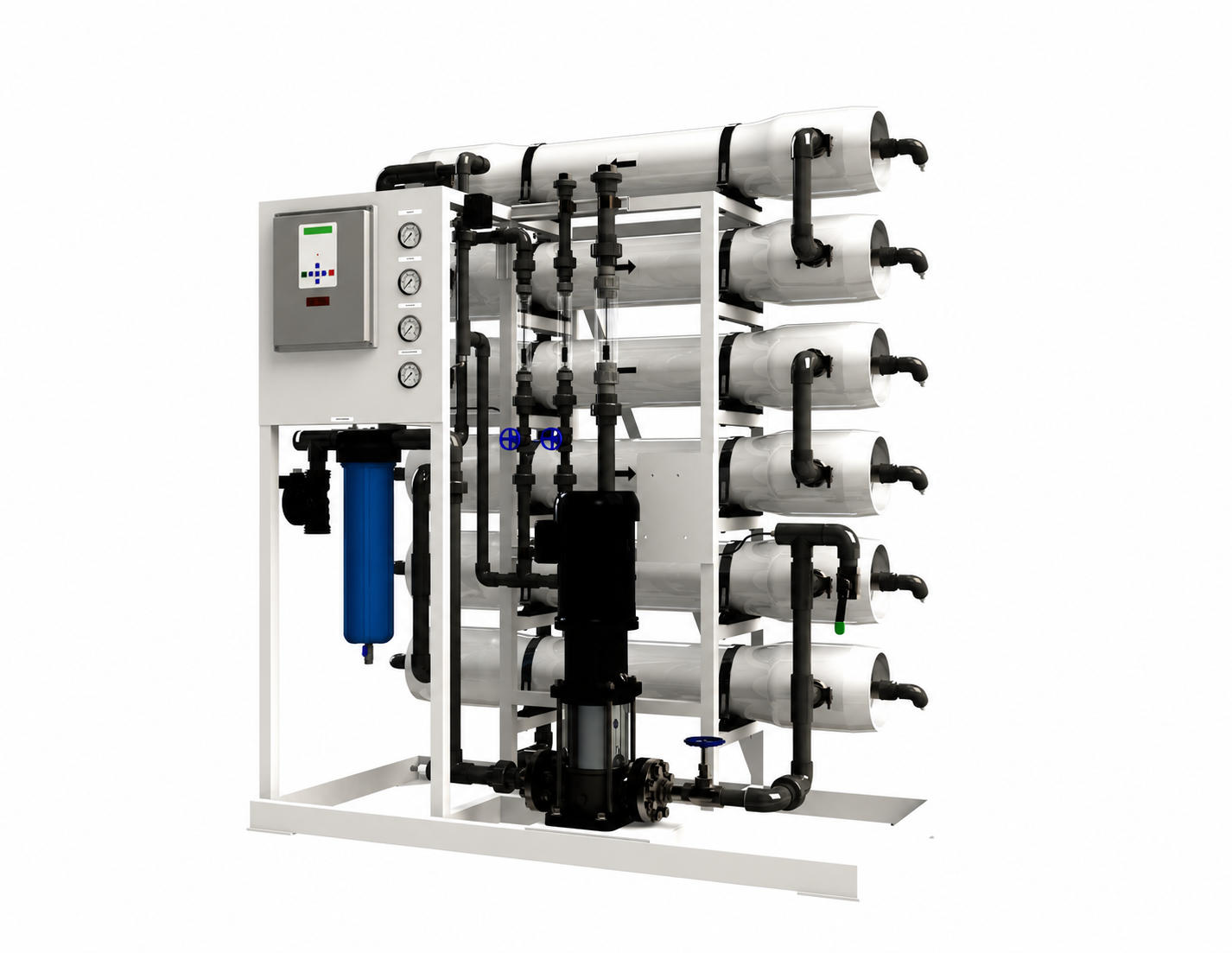

The AXEON X1-4180 Compact is a complete reverse osmosis system designed for commercial and industrial applications requiring up to 43,200 gallons of purified water per day. Its compact skid-mounted design is ideal for manufacturing, food and beverage processing, pharmaceutical production, boiler feed, laboratories, car washes, and other applications requiring a dependable supply of high-quality purified water.
The system utilizes low-energy reverse osmosis membranes, a vertical stainless steel multi-stage pump, and an S-150 programmable controller to reduce dissolved solids, minerals, and other contaminants from municipal or brackish water supplies. Its powder-coated carbon steel frame, stainless steel prefilter housing, integrated instrumentation, and clean-in-place ports provide reliable operation, simplified maintenance, and consistent water production in continuous-duty environments.
Features:
- Produces up to 28,800 gallons of purified water per day
- Compact skid-mounted design minimizes installation space
- Low-energy RO membranes improve operating efficiency
- Vertical stainless steel multi-stage pump delivers reliable performance
- S-150 programmable controller automates system operation
- Integrated feed and permeate TDS monitoring
- Clean-in-place ports simplify membrane maintenance
- Multi-cartridge stainless steel prefiltration protects system components
- Powder-coated carbon steel frame resists corrosion
- Factory assembled and performance tested
Product type: Complete reverse osmosis system
Brand: AXEON
Model: X1-4180 Compact
Production capacity: 28,800 GPD
Voltage: 220V
Frequency: 60Hz
Phase: Three phase
Membrane type: Low-energy RO membranes
Pump type: Vertical stainless steel multi-stage pump
Controller: S-150 programmable controller
Prefiltration: 5-micron multi-cartridge filter housing
Frame material: Powder-coated carbon steel
Piping: Schedule 80 PVC
CIP ports: Integrated
Application: Commercial and industrial water treatment
