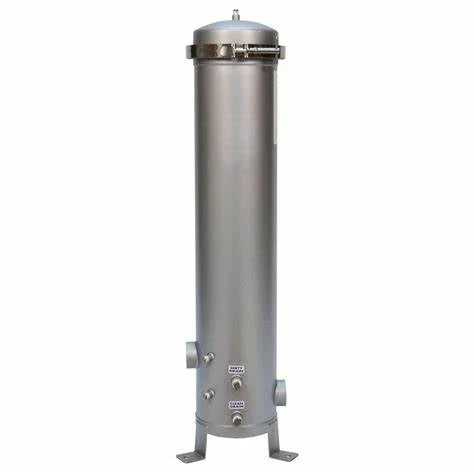

212617- HOUSING, MULTI-CART, SS, 316, 5 RND 30", 2" MNPT, SHELCO

Part #: 212617
Login / Register

Multi-Cartridge Filter Housings are designed for general purpose industrial and commercial filtration needs and are constructed with heavy-duty 304L or 316L stainless steel for maximum durability and corrosion resistance.



Features:

  • V-Band clamp or swing bolt closures for quick and easy cartridge change outs and secure sealing
  • Holds four or five cartridges from 10” to 40” lengths for optimal choice of flow rates
  • Accepts double open-ended (DOE) style cartridges (222 and 226 style adapters are optional)
  • Knife edge seals eliminate bypass on DOE cartridge
  • Adjustable top plate accepts variable length cartridges
  • Wide range of options to meet specific filtration and installation requirements

Model: 5F0S3-316-MLX-AX

Flow Capacity: 75 - 105 gpm

Quantity (Length) of Cartridges: 5 (30")

Maximum Diameter Cartridge: 2 3/4"

Length of Cartridges: 30

Closure Style: V-Band Clamp

Material: 316 L Stainless Steel

Connection Size: 2" MNPT

Options: Mounting Tabs

Gasket: Buna N
