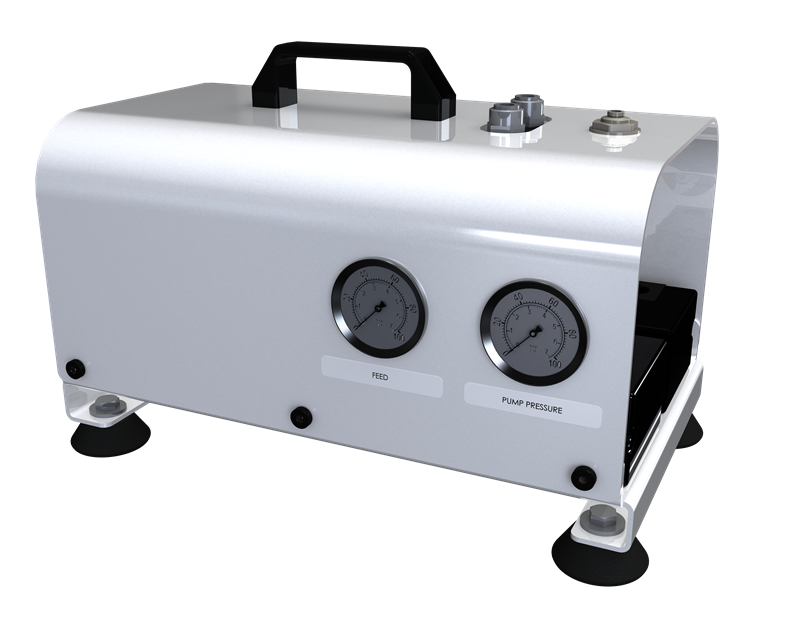

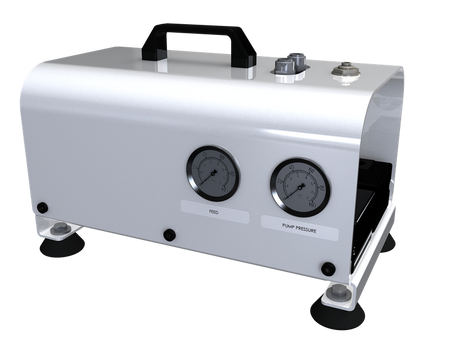

212586- PUMP, BOOSTER BOX, 401 W-1/3HP, HYDRO, AXEON
Couldn't load pickup availability
The 212586 AXEON HYDRO Booster Pump Box features a 1/3 horsepower carbonator motor coupled to a 401 rotary vane pump that produces up to 2.3 gallons per minute! Engineered with a low-pressure switch that features a 30-psi cut off to safeguard against loss of incoming water pressure, this booster pump box helps to increase the production flow of your reverse osmosis system. The built-in high-pressure switch allows for the use with an atmospheric or bladder tank and turns the unit on/off during operation. Great in areas that have colder feed water temperatures or low incoming feed water pressure!
Duty Cycle Continuous
Fitment External to Most RO Systems
High Pressure Cutoff Yes
Low Pressure Cutoff Yes
Max Output Pressure PSI 150 psi
Max Flow Rate GPM 2.3
Port Size (In/Out) 1/2" tube inlet x 3/8" tube outlet
Standard Voltage 115V 60Hz 1 PH
Voltage Amp Draw 5.6A
