Georg Fischer

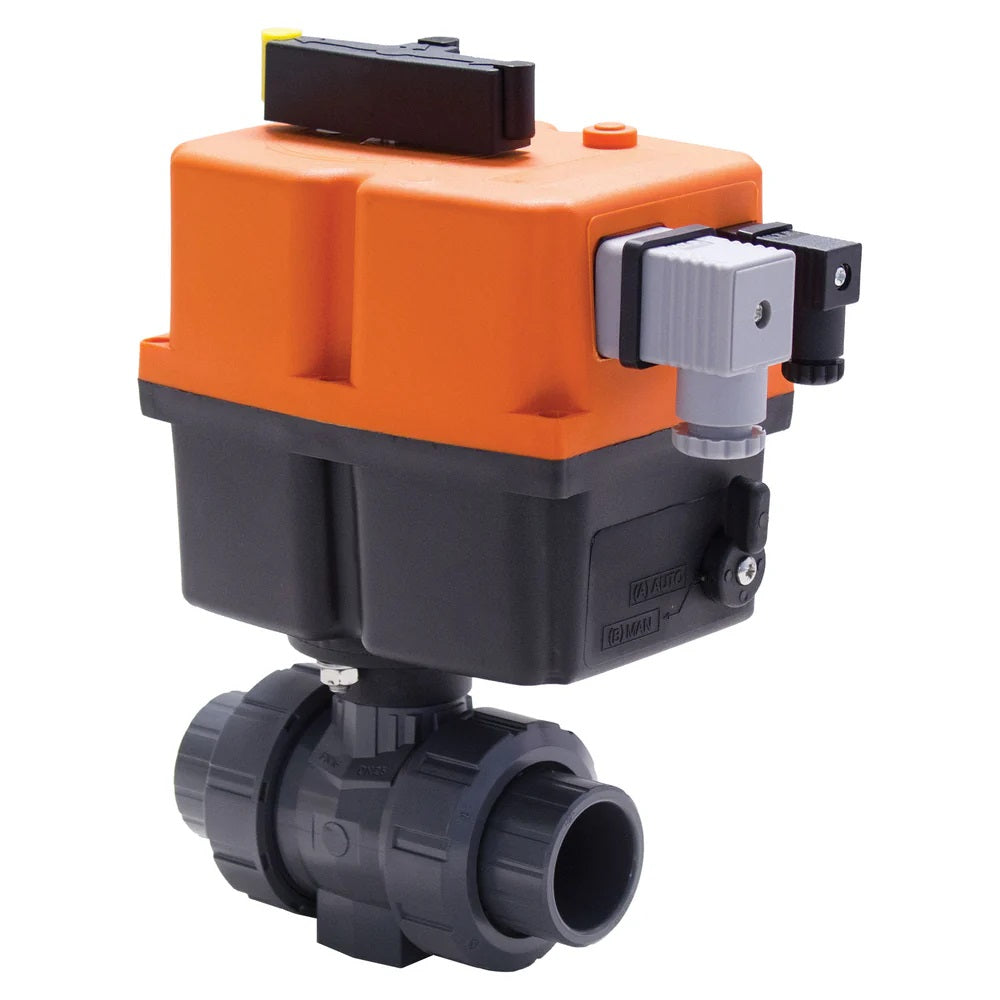

212542- VALVE, BALL, ACTUATED, 1/2" PVC, 220V, TYPE 104, GEORG FISCHER

Part #: 212542
Login / Register

The Georg Fischer Type 104 Ball Valve offers an economic solution for less demanding applications. The 104 is available in PVC or CPVC. The type 104 is based on the same industrial ball valve Georg Fischer uses in other applications. This means the valve is true union and can be repaired if need be. With a 75% duty cycle the valve is suitable for mid to light cycle conditions.

Features:

  • Designed for light duty applications
  • Sizes from 1/2" to 2"
  • 110 VAC, 220VAC and 24VDC voltages available
  • Manual overdrive
  • Socket, flanged and threaded NPT connection end options
  • PTFE seat
  • EPDM or FPM seals
  • 75% duty cycle
  • Limit switches 4 SPDT micro

Connection Type: Socket

Size: 1/2"

Seal Material: EPDM

Actuator Type: Electric

Body Material: CPVC

Valve Series: Type 104
