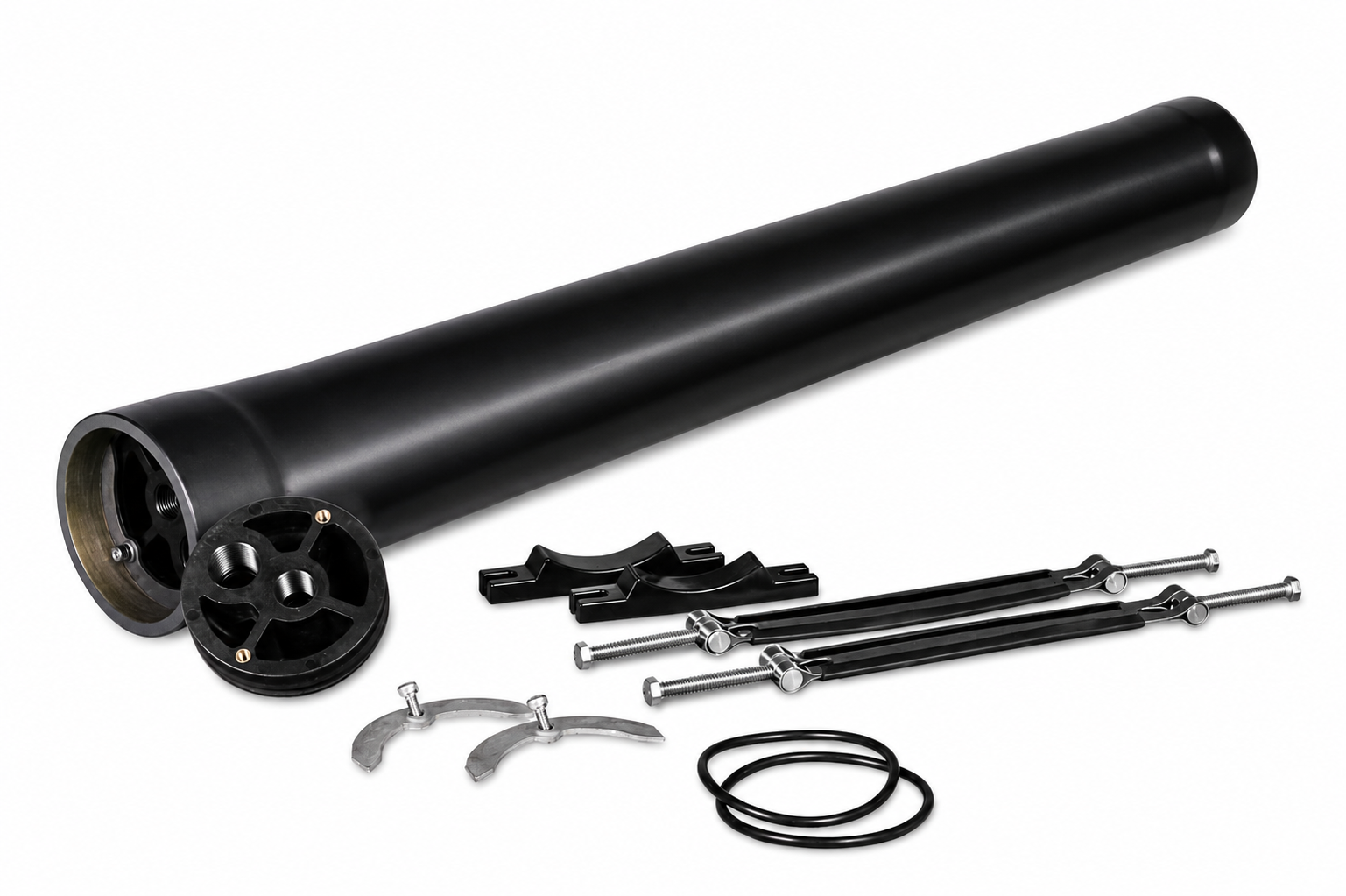

211845- HOUSING, MEMBRANE, BLACK, FRP-4040-300E, 1/2" P X 1/2" C FNPT, AXEON
Couldn't load pickup availability
The AXEON® FRP–Series Black Membrane Housings are for continuous long-term use for reverse osmosis, nanofiltration and ultrafiltration elements which are used on typical commercial water treatment systems at pressures up to 300 psi. They feature end entry connections and the True-Lock™ Integrated Locking System, and demonstrate a higher resistance to various climate conditions, feedwater conditions and chemicals.
AXEON 2.5" diameter membrane housings are available in 14", 21" and 40" lengths, and 4.0" diameter membrane housings are offered in 14", 21", 40", and 80" lengths.
Features:
- Fiberglass Construction
- End Entry Connections
- Single Piece ABS End Plugs
- True–Lock™ Integrated Locking System
- Accommodates All Standard Sized Membrane Elements
- Interconnector and Mounting Clamps Available
- Includes Mounting Strap and Rubber Saddles
AXEON Part Number: 211845
Number of Membranes: 1
Membrane Diameter (inch / mm): 4 / 101.60
Membrane Length (inch / mm): 40 / 1016
Feed Connection (inch): 1/2" FNPT
Permeate Connection (inch): 1/2" FNPT
Concentrate Connection (inch): 1/2" FNPT
Maximum Operating Pressure (psi / bar): 300 / 21
Minimum Operating Temperature (F° / C°): 35 / 2
Maximum Operating Temperature (F° / C°): 150 / 66
