211706- MEMBRANE, ENCAPSULATED, 1/4" QC, NE, 1812, 75 GPD, AXEON
Couldn't load pickup availability

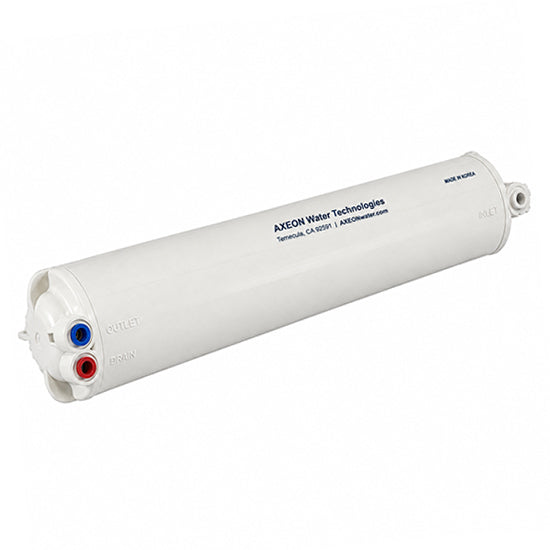

The AXEON NE-1812 Encapsulated Reverse Osmosis Membrane is designed for residential and point-of-use RO systems requiring higher daily water production with simplified, leak-free installation. Rated at 75 gallons per day, this encapsulated membrane is ideal for under-sink drinking water systems and compact RO units with increased demand.
The sealed, all-in-one housing integrates the membrane with 1/4″ quick-connect fittings, eliminating the need for a separate membrane housing and reducing installation time. Manufactured with thin-film composite (TFC) membrane technology, the NE-1812 delivers consistent dissolved solids reduction and reliable permeate flow.

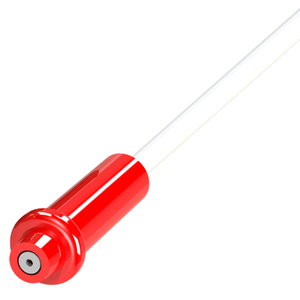

(Recommended Flow Restrictor: AXEON Capillary Flow Restrictor Red 200 ML/Min 75 GPD - 211950)
Features:
- 75 GPD encapsulated reverse osmosis membrane
- Integrated sealed housing design
- 1/4″ quick-connect inlet and outlet connections
- Thin-film composite (TFC) membrane technology
- Simplified installation and replacement
- Leak-resistant, space-saving construction
- Designed for residential and point-of-use RO systems
Description: NE-2012-75E
Applied Pressure (psi / bar): 60 / 4.14
Permeate Flow Rate (gpd / lpm): 75 / 11.83
Nominal Salt Rejection %: 96
Connection Size (in): 1/4" QC
Membrane Type: Polyamide Thin-Film Composite
Maximum Operating Temperature (°F / °C): 100 / 37.80
Maximum Operating Pressure (psi / bar): 125 / 8.62
Maximum Feed Flow Rate (gpm / lpm): 2 / 7.60
pH Range, Continuous Operaiton: 3 - 11
Maximum Feed Silt Density Index (SDI): 5
Chlorine / Chloramine Tolerance (ppm): 0
