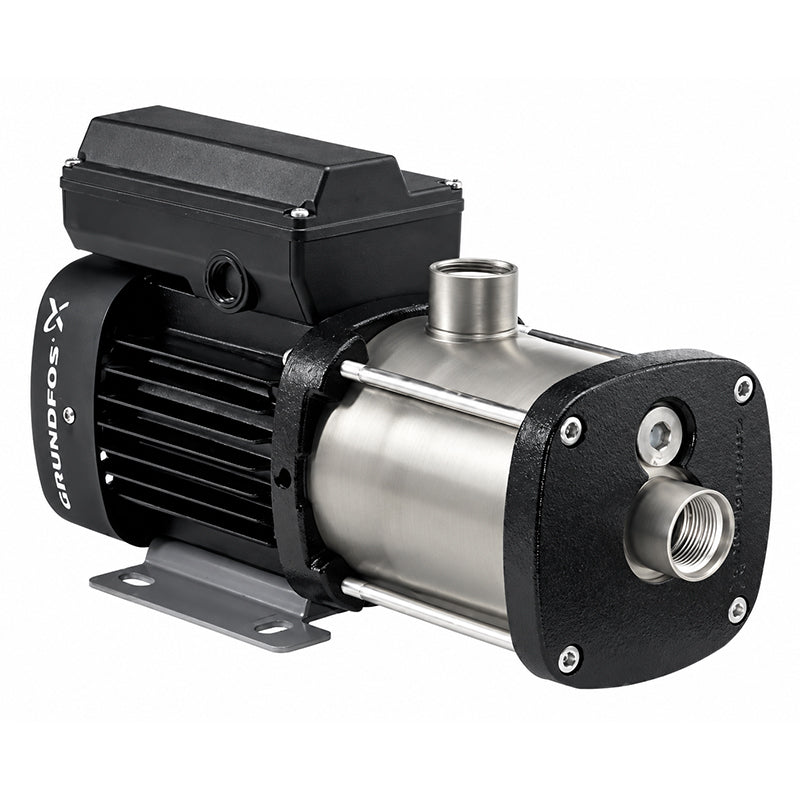

211007- PUMP, CM3-8, 2HP, 115/230V 60HZ 1PH, 304SS, 998511, GRUNDFOS

Part #: 211007
Login / Register

The Grundfos CM Series are reliable, quiet, and compact horizontal end-suction pumps designed for a wide range of applications. Their modular design makes it simple to create customized solutions, and they are available in cast iron or stainless steel for enhanced durability. The CM3-8 model is ideal for systems requiring consistent performance, corrosion resistance, and easy maintenance.



Features:

  • Horizontal Multistage Centrifugal Design
  • Compact and Quiet Operation
  • Modular Construction for Easy Customization and Service
  • Durable 304 Stainless Steel Wet End for Corrosion Resistance
  • Mechanical Shaft Seal for Reliable Operation
  •  TEFC Motor Ensures Protection and Longevity
  • Easy Installation and Maintenance
  • ISO 9906:2012 (3B) Performance Standards Compliant

Model: CM3-8

Horsepower: 2 HP

Voltage: 115 / 230 V, 1-Phase, 60 Hz

Pump Material: 304 Stainless Steel

Max Flow: ~13.7 GPM (3.1 m³/h)

Max Head: ~183 ft (55.9 m)

Max Operating Pressure: 145 PSI (10 bar)

Liquid Temperature Range: –4 °F to 104 °F (–20 °C to 40 °C)

Connections: 1" inlet / 1" outlet (Rp 1 internal thread)

Seal Type: Mechanical O-ring

Motor Type: TEFC (Totally Enclosed Fan Cooled)
