209631- SYSTEM, RO, T3-4140, 220V 60HZ 3PH, AXEON
Couldn't load pickup availability

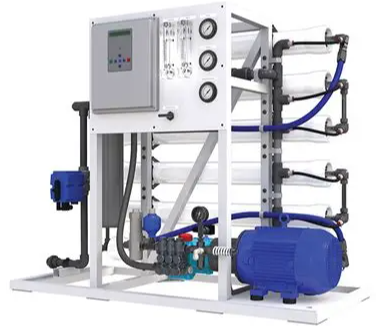

The AXEON T3-4140 is a complete reverse osmosis system engineered for seawater desalination and other high-salinity applications requiring up to 4,000 gallons of purified water per day. It is designed for marine, offshore, municipal, industrial, and remote installations where dependable production of high-quality water from seawater is essential.
The system utilizes high-rejection seawater reverse osmosis membranes, a 316L stainless steel CAT® plunger pump, and an S-150 programmable controller to remove dissolved salts and contaminants from feedwater with TDS levels up to 45,000 ppm. Its corrosion-resistant aluminum frame, high-pressure stainless steel tubing, fiberglass membrane housings, and integrated instrumentation provide reliable operation and simplified maintenance in demanding seawater environments.
Features:
- S –150 Computer Controller
- High Rejection Seawater Membrane
- AXEON FRP– Series Membrane Housing
- AXEON 5-Micron Sediment Pre-Filte
- High Pressure 316L Stainless Steel Tubing and Fittings
Product type: Complete reverse osmosis system
Brand: AXEON
Model: T3-4140
Production capacity: 4,000 GPD
Voltage: 220V
Frequency: 60Hz
Phase: Three phase
Feed water source: Seawater
Maximum feed TDS: 45,000 ppm
Membrane type: High-rejection seawater membranes
Membrane housing: AXEON FRP Series, 1,000 PSI
Pump type: CAT® 316L stainless steel plunger pump
Controller: S-150 programmable controller
Pre-filtration: 5-micron filter bag
Frame material: White powder-coated aluminum
High-pressure tubing: 316L stainless steel
Application: Seawater desalination and industrial water treatment
