209530- SYSTEM, RO, 5-STAGE, PUMP, 110V 60HZ 1PH, RFP-5000, AXEON

Part #: 209530
Voltage
Login / Register

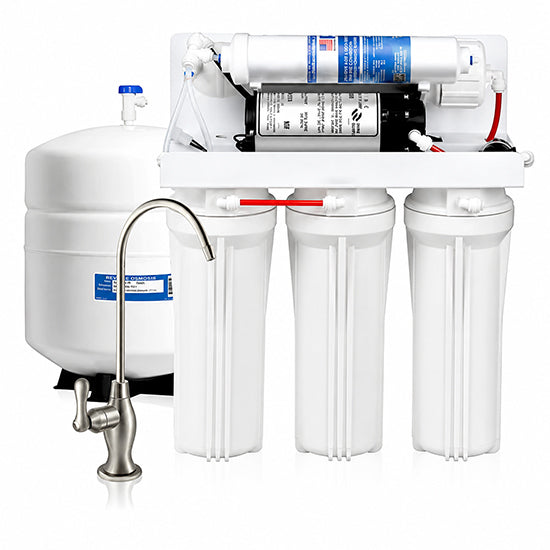

The AXEON RFP-5000 5-Stage Reverse Osmosis System with Pump is designed for commercial and light industrial applications requiring enhanced water purification with boosted inlet pressure. This system integrates a built-in booster pump to ensure consistent performance in locations with low or fluctuating feed water pressure.

Featuring a five-stage filtration process—including sediment and carbon pre-filtration, a high-rejection RO membrane, and post-filtration polishing—the RFP-5000 delivers high-quality permeate while protecting downstream equipment. Operating on 110V single-phase power, this system is ideal for food service, beverage, laboratory, and general process water applications requiring reliable, pressurized RO performance.



Features:

  • AXEON SDF-Series 2.5 x 10" 5 Micron Sediment Filter
  • AXEON CBF-Series 2.5 x 10" 10 Micron Carbon Block
  • AXEON ILF-Series Inline Post Filter Cartridge
  • Pentair Slim Line 10" Filter Housings
  • Aquatec 8800 Booster Pump
  • Housing Filter Wrench
  • P.A.E. 4 Gallon Storage Tank
  • All Necessary Components for Quick and Easy Installation
  • John Guest Quick Connect Fittings
  • Long Reach Non-Air Gap Faucet
  • 100% Tested and Assembled in the U.S.A.
  • 1 Year Manufacturer Warranty

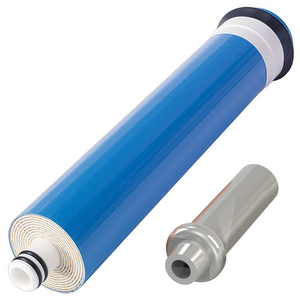

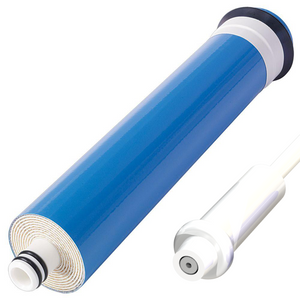

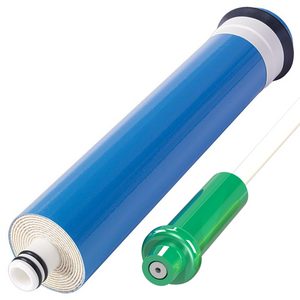

  • Membrane and Flow Restrictor Kit sold separately

Capacity (gpd): System Only. Membrane and Flow Restrictor Kit sold separately

Stages: 5

Booster Pump: Aquatec 8800 Booster Pump

Voltage: 110V or 220V

Nominal Salt Rejection %: 98

Operating Pressure (psi / bar): 50- 90 / 3.45 - 6.21

Operating Temperature (°F / °C): 40 - 100 / 4.40 - 37.80

Water Hardness (gpg): <10

TDS (ppm): <1,000

Warranty: 1-Year Warranty
