SYSTEM, RO, LC-1500, AXEON

Part #: 209184 / 209495
Voltage
Login / Register

The AXEON LC-1500 Reverse Osmosis System is engineered for light commercial water treatment applications requiring higher daily production with consistent, reliable water quality. With a nominal capacity of 1,500 gallons per day, this system is ideal for food service, laboratories, hydroponics, ice machines, and other commercial point-of-use installations.

The LC-1500 features a multi-stage filtration process that includes sediment and carbon pre-filtration to protect the RO membrane, followed by a high-rejection reverse osmosis membrane for effective dissolved solids reduction. Its compact and service-friendly design allows for straightforward installation, easy maintenance, and dependable long-term performance.



Features:

  • 1,500 GPD nominal production capacity
  • Multi-stage reverse osmosis filtration
  • Sediment and carbon pre-filtration
  • High-rejection RO membrane
  • Compact, space-efficient design
  • Reliable and consistent performance
  • Easy installation and maintenance
  • Ideal for light commercial applications

        Model: LC-1500

        Capacity (gpd): 1500

        Configuration: Single Pass

        Feedwater Source: TDS < 1,000 ppm

        Standard Recovery Rate %: Up to 75

        Permeate Flow (gpm): 1.04

        Minimum Feed Flow (gpm): 2.74

        Maximum Feed Flow (gpm): Up to 8

        Feed (in): 1/2" QC

        Permeate (in): 3/8" QC

        Concentrate (in): 3/8" QC

        Membrane(s) Per Vessel: 1

        Membrane Quantity: 2

        Membrane Size: 3018

        Nominal Salt Rejection %: 98

        Vessel Array: 1:1

        Vessel Quantity: 2

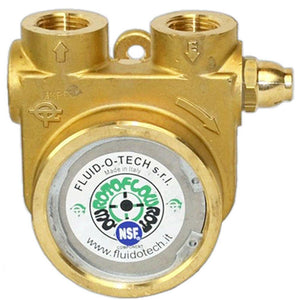

        Pump Type: Rotary Vane 601 Low Lead Brass

        Motor HP: 1/2

        RPM @ 60Hz: 1725

        Standard Voltage + Amp Draw: 110V, 1 PH, 60Hz, 8.2A / 220V, 1 PH, 50 / 60Hz, 8.2A

        Warranty: 1-Year
