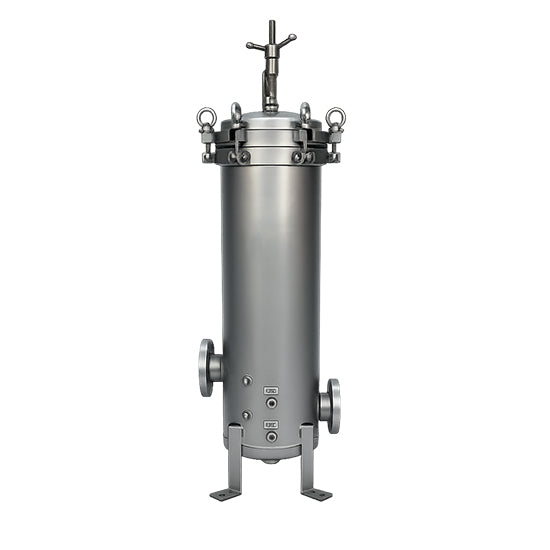

Shelco Multi-Cartridge Housing 304 SS 12 Round 30" 150 PSI 3" Flange

Part #: 208983
List Price $13,498.88
Please Login / Sign Up

208983 Shelco Multi-Cartridge Filter Housings are designed for general purpose industrial and commercial filtration needs and are constructed with heavy-duty 304L or 316L stainless steel for maximum durability and corrosion resistance.

Features:

  • V-Band clamp or swing bolt closures for quick and easy cartridge change outs and secure sealing
  • Holds four or five cartridges from 10” to 40” lengths for optimal choice of flow rates
  • Accepts double open-ended (DOE) style cartridges (222 and 226 style adapters are optional)
  • Knife edge seals eliminate bypass on DOE cartridge
  • Adjustable top plate accepts variable length cartridges
  • Wide range of options to meet specific filtration and installation requirements



Applications:

  • Water
  • Desalination
  • Chemicals
  • Food & Beverage
  • Electronics
  • Oil / Gas
  • Power
  • Inks / Paints / Coatings
  • Coolants
  • Pulp & Paper

    Specifications:

    • Model: 12FOS3-TABS
    • Flow Capacity: 180 - 252 gpm
    • Quantity (Length) of Cartridges: 12 (30")
    • Maximum Diameter Cartridge: 2 3/4"
    • Length of Cartridges: 30"
    • Closure Style: Swing Bolt
    • Material: 304L Stainless Steel
    • Connection Size: 3" Flange
    • Options: Mounting Tabs
    • Gasket: Buna N
