208944- SYSTEM, RO, X1-4280, 220V, 60HZ, 3PH, AXEON

Part #: 208944
Login / Register
Description

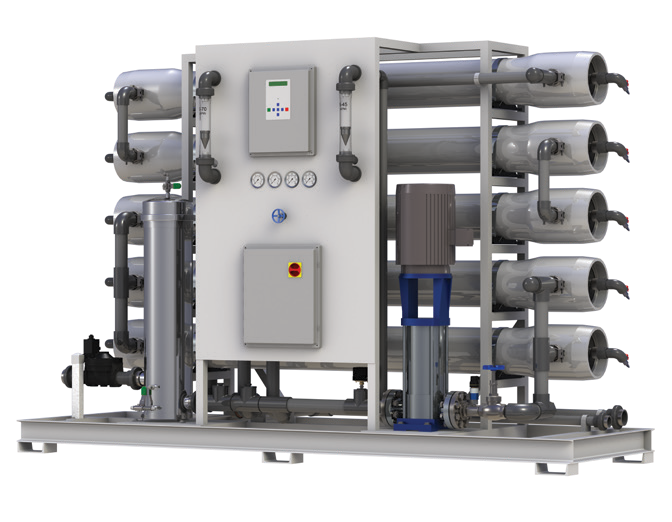

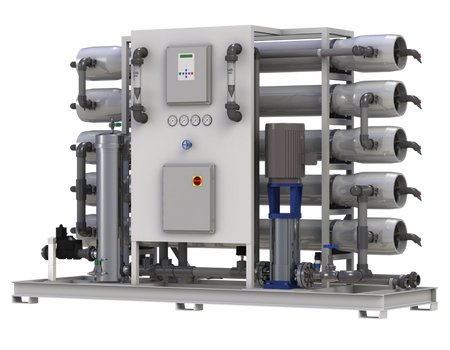

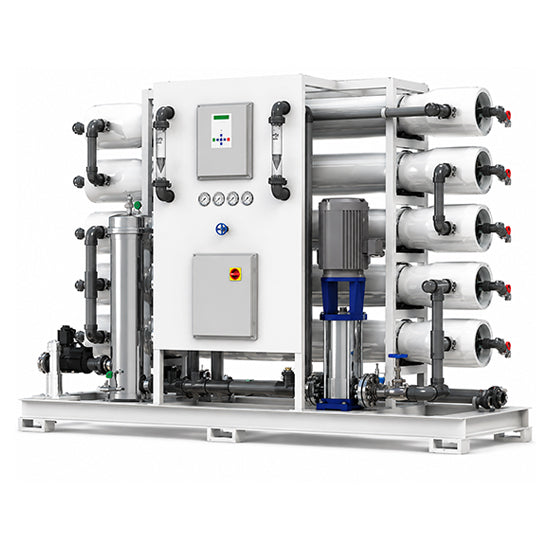

The AXEON X1-4280 Reverse Osmosis System is designed for high-capacity industrial water purification in demanding commercial and industrial applications. It is commonly used for treating municipal or well water to produce high-quality permeate for manufacturing, food and beverage, pharmaceutical, and large-scale process operations.

Engineered as part of the X1-Series platform, this system utilizes advanced 8-inch membrane technology and high-efficiency components to deliver increased production and performance. Its skid-mounted, pre-plumbed design includes integrated controls, instrumentation, and stainless steel components for reliable operation, easy installation, and long-term durability.



Features:

  • S –150 Pre-Programmed Computer Controller
  • S – 200 Pre-Programmed Computer Controller with VFD
  • 8 inch Low Energy Membrane Elements
  • 8 inch Fiberglass Membrane Housings with Stainless Steel Side Ports (300 psi)
  • 5-Micron Sediment Cartridge Filters
  • Multi-Cartridge 304L Stainless Steel Cartridge Housing
  • Permeate and Concentrate Rotameters
  • Permeate and Concentrate Digital Paddlewheel Sensors
  • Pre- and Post- Filter Pressure Gauges
  • Pump Pressure and Concentrate Pressure Gauges
  • Feed and Permeate TDS Monitoring
  • Composite Feed Solenoid Valve
  • Motorized Feed Valve
  • Stainless Steel Globe Throttling Valves
  • Low and High Pressure Shut-Off Switches
  • Efficient Vertical Stainless Steel Multi-Stage Pump
  • Powder Coated Carbon Steel Frame
  • Sch80 PVC Piping
  • Clean-In-Place (CIP) Ports with Valves
  • Permeate Sample Valves
  • Chemical Feed Ports
  • Chemical Feed Power Outlet

Specifications:

  • Model: X1-4280
  • AXEON Part Number: 208944


Design:

  • Configuration: Single Pass
  • Feedwater Source: TDS < 2,000 ppm
  • Standard Recovery Rate %: 75


Flow Rates:

  • Permeate Flow (gpd / lpd): 57,600 / 218,039
  • Permeate Flow (gpm / lpm): 40 / 151.42
  • Minimum Concentrate Flow (gpm / lpm): 14 / 53


Connections:

  • Feed (in): 2 FNPT
  • Permeate (in): 2 FNPT
  • Concentrate (in): 1 1/4 FNPT
  • Clean-in-Place Port (in): 1 1/2 FNPT
  • Chemical Feed Port (in): 1/2 NPT


Membranes:

  • Membrane(s) Per Vessel: 2
  • Membrane Quantity: 8
  • Membrane Size: 8040
  • Nominal TDS Rejection %: 99


Vessels:

  • Vessel Array: 1:1:1:1
  • Vessel Quantity: 4


Pumps:

  • Pump Type: Vertical Multi-Stage Centrifugal Pump
  • Motor HP: 10


System Electrical:

  • Standard Voltage + Amp Draw: 208V - 230V, 60Hz, PH, 28A


Operating Limits:

  • Maximum Feed Temperature (°F / °C):  85 / 29
  • Minimum Feed Temperature (°F / °C):  40 / 4
  • Maximum Ambient Temperature (°F / °C): 120 / 49
  • Minimum Ambient Temperature (°F / °C): 40 / 4
  • Maximum Feed Pressure (psi / bar): 85 / 6
  • Minimum Feed Pressure (psi / bar): 45 / 3
  • Maximum Operating Pressure (psi / bar): 200 / 14
  • Maximum Feed Silt Density Index (SDI): < 3
  • Maximum Turbidity (NTU): < 1
  • Maximum Free Chlorine (ppm): 0
  • Maximum Hardness (gpg): 0
  • Maximum pH (Continuous): 11
  • Minimum pH (Continuous): 2
  • Maximum pH (Cleaning 30 Minutes): 13
  • Minimum pH (Cleaning 30 Minutes): 1
