208847- SWITCH, PRESSURE, LOW, N/O, 12-22 PSI, 1/4" FNPT, PUMPTROL
Couldn't load pickup availability

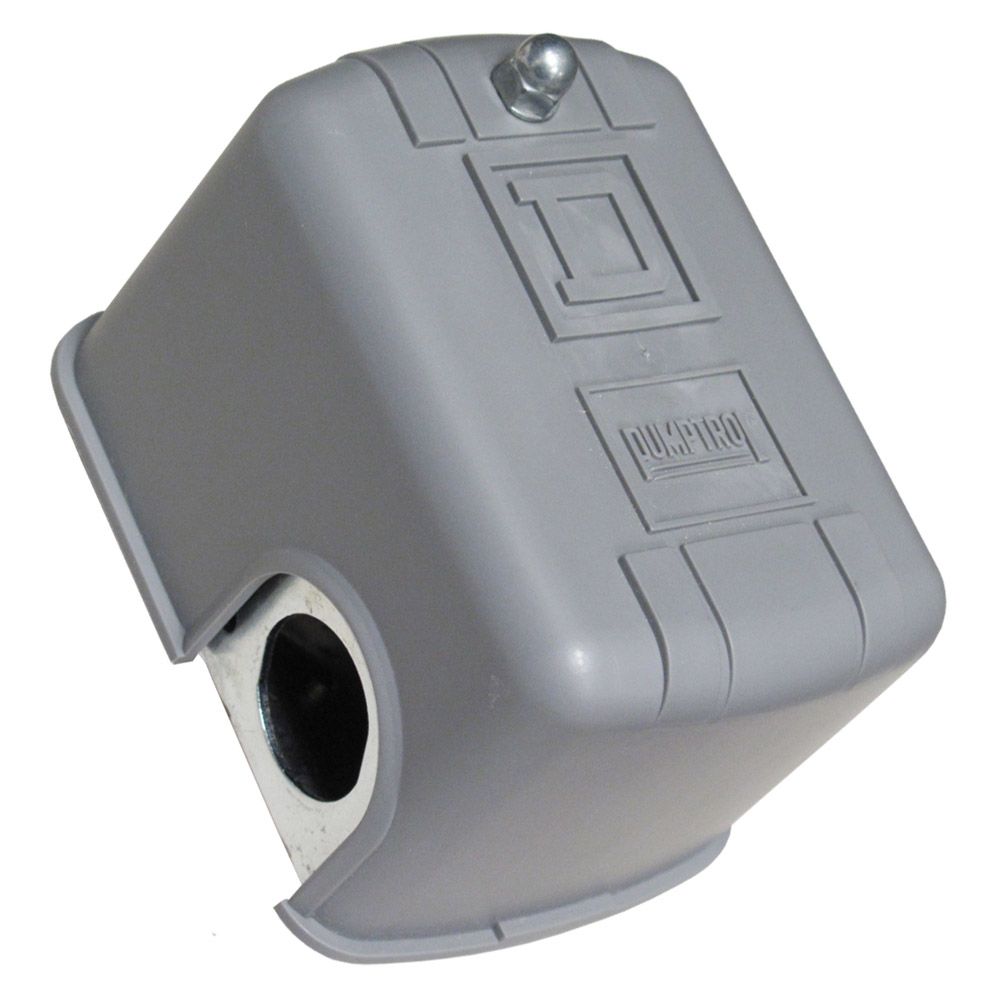

The Square D Pumptrol 9013FRG Electromechanical Reverse Action Pressure Switches are the industry standard for household well installations. The sensing element confirms that the pressure has reached the predetermined set point and activates the switch. They are easy to install, have adjustable cut-in and cut-out settings and are designed to control electrically driven water pumps such as circulators, submersibles, and boosters.
Features:
- Pump-out Application: Applications designed to empty a tank utilize these reverse action pressure switches to start a pump until the pressure/fluid level is reduced to the desired point.
- Pump Shut Down Application: These switches can be wired in series with FSG standard action normally closed pressure switches to automatically shut off pumps in case of emergency such as power loss or pipe bursts.
- Low Level Alarm Application: The 9013FRG reverse action pressure switch can be set to trigger an alarm based on the low pressure conditions.
- Manual On/Off Switch:The 9013 series offers an optional on/off lever for the pressure switch. This allows you to manually turn on and off your pump system for extended periods of time when you are going to be away or have remote locations not regularly in use.
- Automatic Low Pressure/Water Cut-off: If system pressure is lost for any reason, a low water condition for example, the automatic low pressure/water cut-off feature will open the contacts, turning off the pump. The low water cut off functions normally and cycles the pump per your typical demands, however, if the system pressure is lost for any reason, the switch contacts open, turning off the pump.
Pressure Switch Type: Reverse action
Pressure Setting: 12-22 psi
Electrical Connection: 1/4″ FNPT
Screw-clamp Terminals, Clamping Capacity: 10 AWG (5.261 mm²)
Fluid Connection Type: 0.25 inch NPSF internal
Enclosure: NEMA 1
Diaphragm: Nitrile (Buna-N) diaphragm
Flange: Glass filled nylon
Terminal Block Type: 4 terminals
Operating Rate: 10 cyc/mn
Insulation Voltage: 575 V conforming to UL 508
