207936- SYSTEM, RO, S3-4125, 220V 50/60HZ 1PH, AXEON
Couldn't load pickup availability

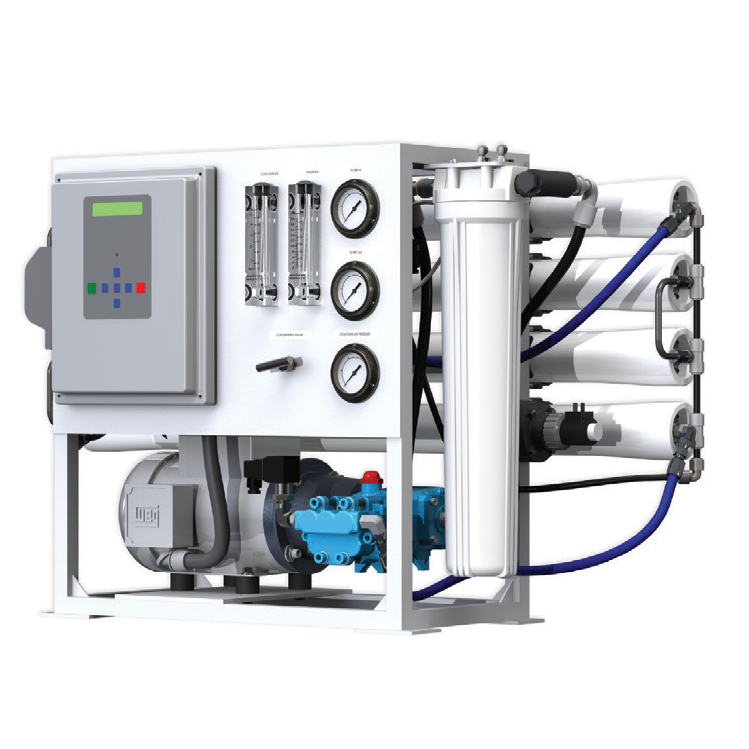

The AXEON S3-4125 is a complete reverse osmosis system engineered for seawater desalination applications requiring up to 4,400 gallons of purified water per day. Its compact design is ideal for marine vessels, offshore platforms, coastal facilities, resorts, remote installations, and other applications requiring a dependable source of high-quality freshwater from seawater.
The system utilizes high-rejection seawater reverse osmosis membranes, a 316L stainless steel plunger pump, and an S-150 programmable controller to remove dissolved salts and contaminants from seawater with TDS levels up to 35,000 ppm. Its corrosion-resistant aluminum frame, fiberglass membrane housings, high-pressure stainless steel tubing, and integrated instrumentation provide reliable operation, simplified maintenance, and consistent water production in demanding marine environments.
Features:
- S-150 Computer Controller
- High Rejection Seawater Membranes
- AXEON FRP-Series Membrane Housings
- AXEON 5-Micron Sediment Pre-Filter
- Permeate and Concentrate Flow Meters
- 0-100 psi 316L-SS Glycerin Filled Filter In and Filter Out Pressure Gauges
- 0-1500 psi 316L-SS Glycerin Filled Concentrate Pressure Gauge
- Plast-O-Matic Feed Solenoid Valve
- AXEON 316L Stainless Steel Needle Valve
- 316L SS Feed Low Pressure Switch
- 316L SS High Pressure Pump Switch
- CAT® 316L High Pressure Pump
- TEFC Motor with Thermal Motor Protection
- Chemical Pump Outlet
- Powder Coated Aluminum Frame
- High Pressure 316L Stainless Steel Tubing and Fittings
- High Pressure Hose with Reusable SS Fittings
Product type: Complete reverse osmosis system
Brand: AXEON
Model: S3-4125
Production capacity: 4,400 GPD
Voltage: 220V
Frequency: 50/60Hz
Phase: Single phase
Feed water source: Seawater
Maximum feed TDS: 35,000 ppm
Standard recovery: 36%
Nominal salt rejection: 99%
Membrane housing: AXEON FRP Series
Pump type: 316L stainless steel plunger pump
Pump motor: 2.5 HP
Controller: S-150 programmable controller
Pre-filtration: AXEON 5-micron sediment pre-filter
Feed connection: 1/2" FNPT
Permeate connection: 3/8" tubing
Concentrate connection: 3/8" tubing
Frame material: Powder-coated aluminum
Application: Seawater desalination and marine water treatment
