207680- SYSTEM, CIP, 200 GAL TANK, CIP-100, 220V 3PH 60HZ, AXEON
Couldn't load pickup availability

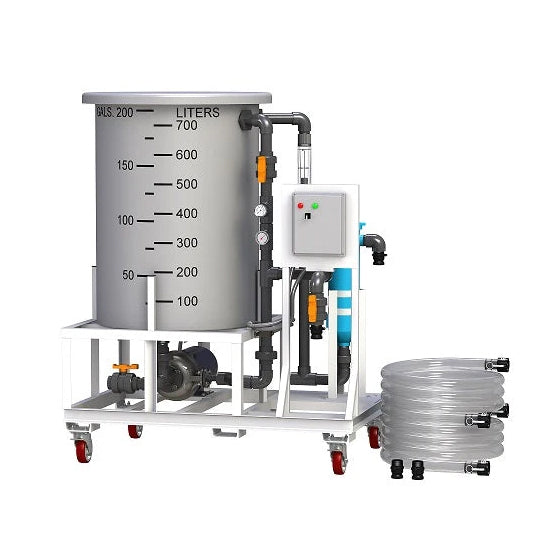

The AXEON CIP-100 is a complete clean-in-place membrane cleaning system designed for high-capacity commercial and industrial reverse osmosis applications requiring routine membrane maintenance. Its mobile skid configuration and 200-gallon solution tank provide the capacity and flow required to clean multiple membrane vessels without removing individual membrane elements from their housings.
The system uses a 316L stainless steel pump with a 7.5 HP TEFC motor to recirculate cleaning solution through membrane elements at controlled flow and pressure, while an integrated mixing loop supports proper preparation and circulation of cleaning agents. Its multi-cartridge filtration, monitoring instrumentation, tank level switches, and mobile design support effective membrane cleaning while helping reduce system downtime and maintain membrane performance.
(AXEON also offers C – Series Membrane Cleaners for use with AXEON Clean-In-Place Systems)
Features:
- On/Off Switch
- Shelco Multi-Cartridge Housing
- AXEON SDF-Series 5 micron Sediment Filter
- AXEON 316L Stainless Steel Pressure Gauges
- SCH 80 PVC Piping with Unions
- Mixing Loop with Valve
- Solution Tank (Polyethylene)
- Tank Level Switches
- Temperature Gauge
- AXEON Flow Meter
- 316L Stainless Steel Pump with TEFC Motor
- Hose Kit
- Caster Wheels
Product type: Complete clean-in-place system
Brand: AXEON
Model: CIP-100
Tank capacity: 200 gal (757 L)
Flow rate: 100 GPM (378.54 LPM)
Motor: 7.5 HP
Inlet / outlet size: 2"
Solution tank material: Polyethylene
Pump material: 316L stainless steel
Pump motor type: TEFC
Filter housing: Shelco multi-cartridge housing
Sediment filter: AXEON SDF-Series 5 micron
Piping: Schedule 80 PVC with unions
Application: RO membrane cleaning and maintenance
