AXEON L1-200 RO System 110V with three white filter housings, pressure gauges, and control panel for high-capacity commercial water purification

AXEON

SYSTEM, RO, L1-200, AXEON

Name: SYSTEM, RO, L1-200, AXEON
Brand: AXEON
SKU: 207315
Price: 2644.97 USD
Availability: InStock

Part #: 207315

Voltage 110V 60HZ 1PH 220V 50/60HZ 1PH

Product variants

Login / Register

Description

AXEON® L1-Series Reverse Osmosis Systems are a cost–effective solution for light commercial reverse osmosis applications such as coffee, tea, food preparation, misting, hydroponics, detailing and more.

AXEON L1-Series Reverse Osmosis Systems feature a compact wall mount space saving design and comes pre-assembled and ready for immediate service with simple utility connections. These systems are available in capacities of 200 and 300 gallons per day and feature a single pump design for reliable performance. Each model is engineered with quality AXEON components including fiberglass (FRP) membrane housings, extra low energy membranes, pressure gauges, filters and housings.

Features:

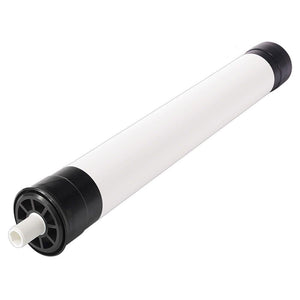

AXEON HF4 – Series Extra Low Energy Membrane Elements
AXEON FRP– Series 300E Fiberglass Membrane Housing
AXEON 5-Micron Sediment Pre-Filter
AXEON 10-Micron Carbon Block Pre-Filter and Post-Filter
Pentair® 10" Slim Line Cartridge Housings
AXEON 0-300 psi Glycerin-Filled Pump Pressure Gauge
AXEON 0-100 psi Glycerin-Filled Pre-Filter Pressure Gauge
AXEON 0-100 psi Glycerin-Filled Permeate Pressure Gauge
Aquatec® Tank High Pressure Switch
Composite Feed Solenoid Valve
Aquatec Auto Flush Timer Valve

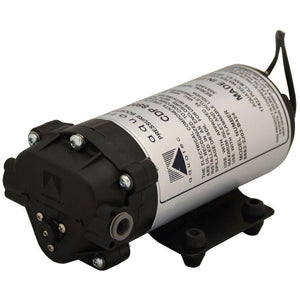

Aquatec High Flow Booster Pump
John Guest® Push/Pull Fittings with Locking Safety Clips

Literature

specifications

Model: L1-200

AXEON Part Number: 207315

Capacity (gpd): 200

Configuration: Single Pass

Feedwater Source: TDS <1,000 ppm

Standard Recovery Rate %: 40

Permeate Flow (gpm): 0.14

Minimum Feed Flow (gpm): 0.35

Minimum Concentrate Flow (gpm): 0.21

Nominal Salt Rejection %: 98.5

Feed (in): 3/8" QC

Permeate (in): 3/8" QC

Concentrate (in): 1/4" QC

Membrane(s) Per Vessel: 1

Membrane Quantity: 1

Membrane Size: 2514

Vessel Array: 1

Vessel Quantity: 1

Pump Type: Aquatec 8800

Standard Voltage + Amp Draw: 110V, 60Hz, 1PH, 4.0A

Warranty: 1-Year Manufacturer's Warranty
