207231 -ELBOW, PLUG IN, 3/8" STEM X 1/4" QC, PARKER
Couldn't load pickup availability

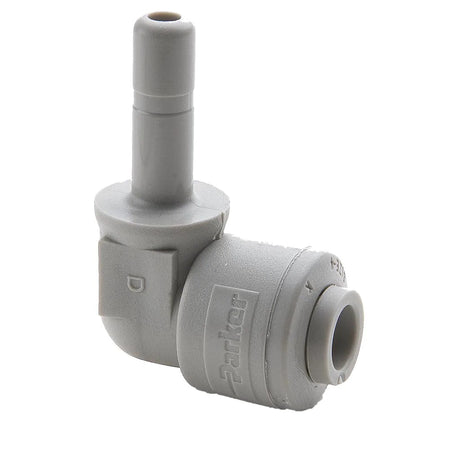

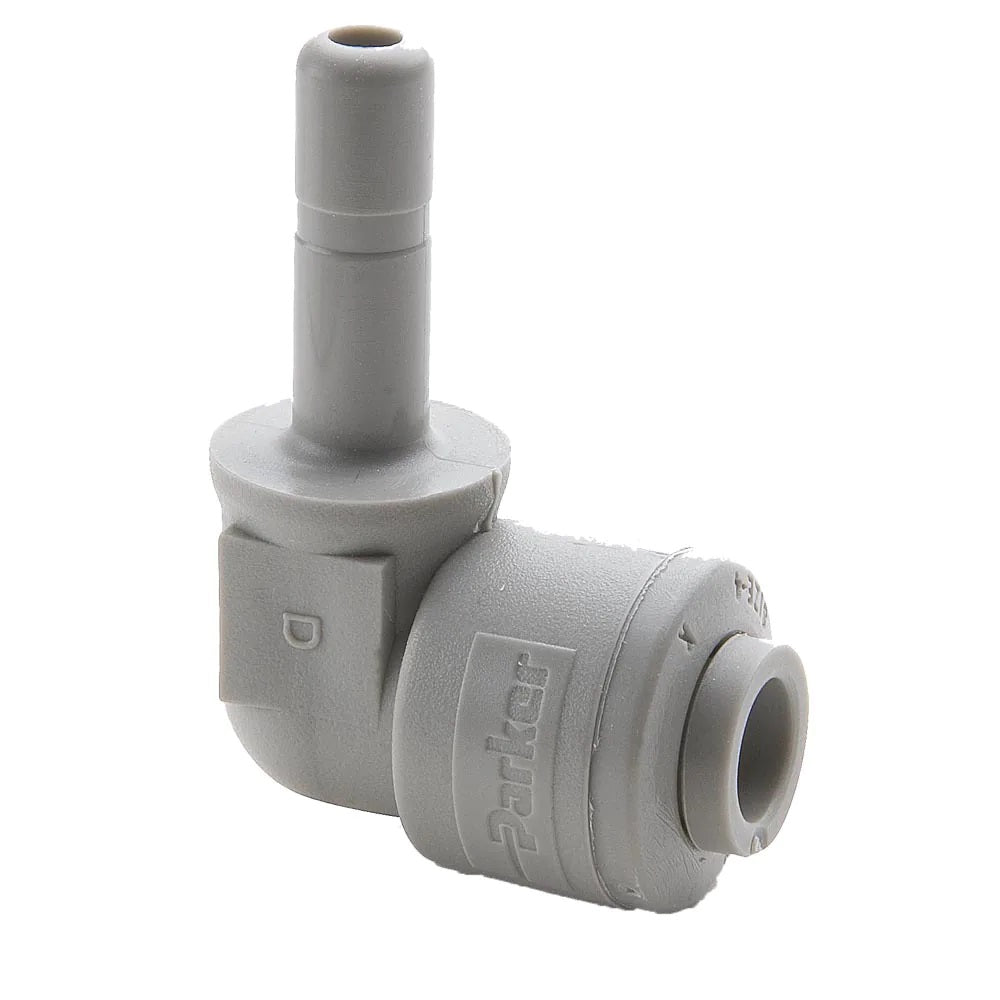

The Parker Elbow Plug-In is a durable push-to-connect fitting designed for quick and easy 90° connections between a 3/8″ stem and 1/4″ OD tubing. Its compact elbow design is ideal for tight spaces and provides a reliable, leak-free seal in both residential and commercial applications. Commonly used in water filtration, beverage dispensing, and pneumatic systems, this fitting ensures long-lasting performance and ease of use.
Features:
- 90° elbow design for efficient use in compact spaces
- 3/8″ stem × 1/4″ quick-connect configuration
- Push-to-connect ends for quick, tool-free installation
- Acetal body ensures strength and chemical resistance
- EPDM O-rings provide reliable sealing
- Rated up to 300 PSI working pressure
- Temperature range: -20°F to 180°F (-29°C to 82°C)
- Suitable for air, water, and beverage applications
- Meets FDA, NSF-51, and NSF-61 certifications
Style: Tube to Tube Stem
Connection 1 Style: Push-to-Connect
Connection 1 Tube O.D. (inch): 3/8"
Shape: 90° Elbow
Connection 2 Style: Tube Stem
Connection 2 Tube Stem O.D. (inch): 1/4"
Body Material: Acetal
Minimum Operating Temperature: -20 °F, -29 °C
Maximum Operating Temperature: 180 °F, 85 °C
Maximum Operating Pressure: 300 psi, 20 bar
Tube Material: Polyethylene, Polypropylene, Nylon, Vinyl, Fluoropolymer, Polyurethane
Media: Air, Water, Soft Drinks, Beer, Wine, Dyes
Application: Filtration, Food Process, Dispensing, Medical, Water Purification
O-Ring Material: EPDM
Specifications Met: FDA, NSF-51, NSF-61
AXEON Part Number: 207231
