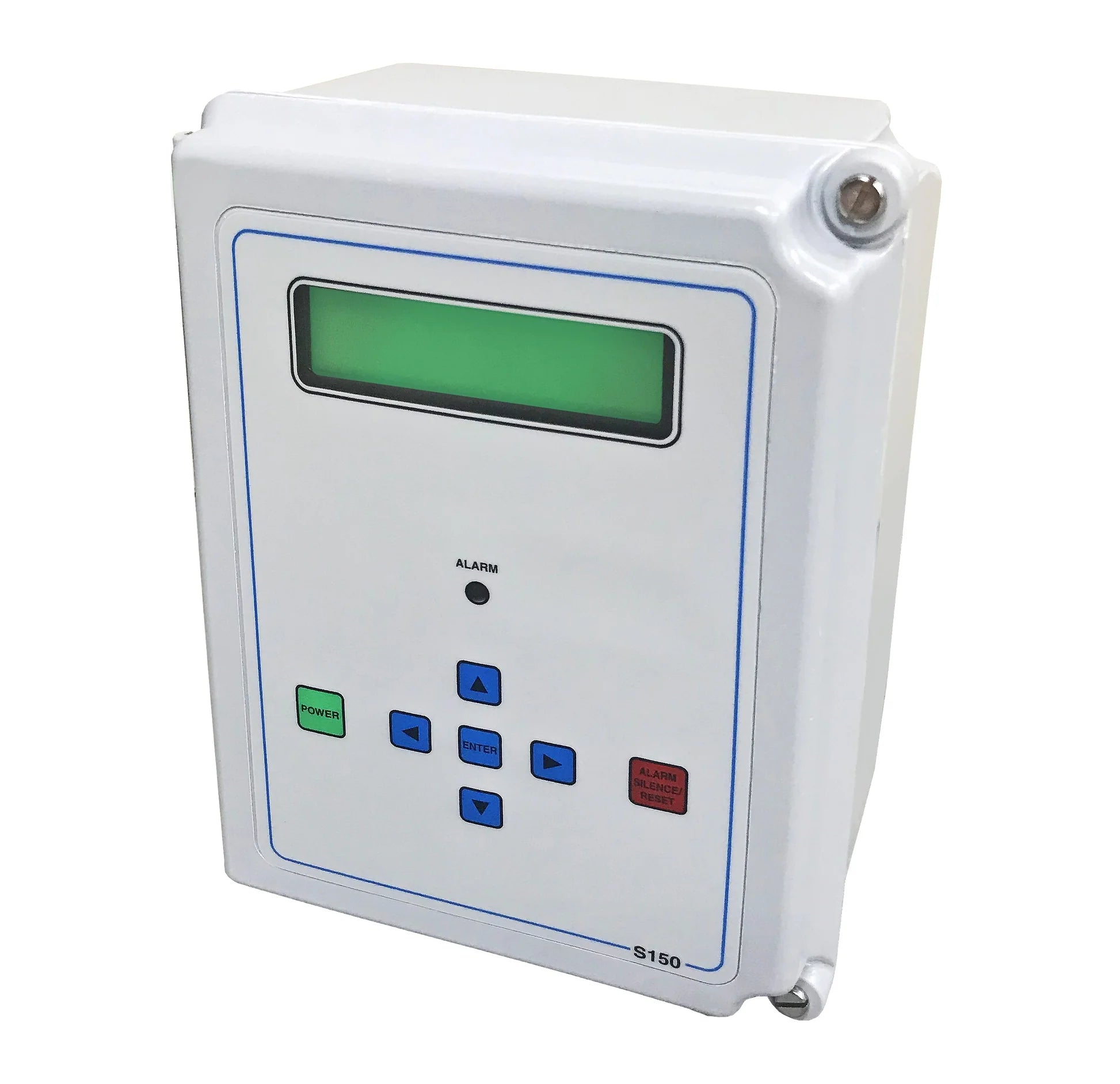

206350- CONTROLLER, COMPUTER, S-150, 220V, 1PH, 12 X 10

Part #: 206350
Login / Register

The Series 150 Microprocessor Controller has features and options to allow the OEM flexibility to meet many different specifications. The controller has five relay outputs, four dry contact inputs and two TDS/conductivity inputs. A 2 line by 20 character LED display provides the operating status of the RO unit along with the water quality, operating hours, and water temperature.

Features:

  • Relay outputs on the Series 150 Controller operate the high pressure pump, inlet valve, flush valve, permeate divert valve, and remote alarm.
  • The relay for the high pressure pump can operate a 1 horse power single phase pump motor directly without external motor controls.
  • Incorporate controls for large hours power motors.
  • Dry contact inputs control the start and stop of the RO unit by monitoring the inlet pressure, tank level, and pretreatment equipment.
  • Permeate monitor and sensor are temperature compensated.
