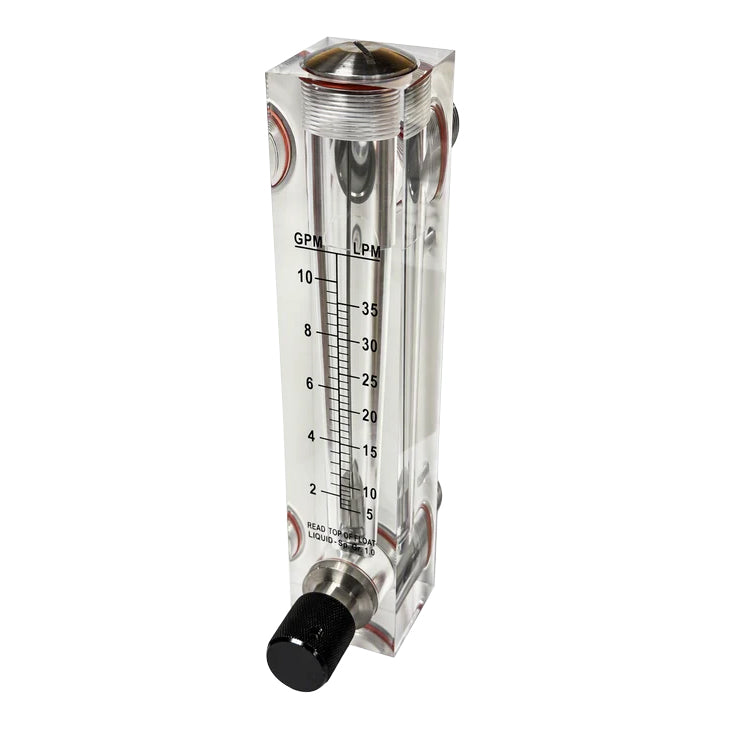

205105- METER, FLOW, PM, 2-10 GPM, SS VALVE, 1" MNPT X, AXEON
Couldn't load pickup availability
The AXEON Panel Mount Flow Meter with Stainless Steel Valve is designed for accurate flow monitoring and manual flow control in commercial and industrial water treatment systems. Featuring a clear, easy-to-read scale with a 2–10 GPM flow range, this meter allows operators to visually confirm system flow rates for proper performance and adjustment.
Equipped with an integrated stainless steel valve and 1″ MNPT connection, this panel-mounted unit provides durability, corrosion resistance, and straightforward installation. It is ideal for use in reverse osmosis systems, filtration skids, and other water processing applications requiring reliable flow measurement and control.
Features:
- Solid One Piece Injection Molded Acrylic Body
- Stainless Steel Float and Internals
- Permanent Screen Printed Scales
- Dual Scale in GPM/LPM or GPH/LPH
- Individually Packaged
- 100% Tested for Accuracy
Flow Range (gpm / lpm): 2 - 10 / 7.5 - 37
Integrated 316L SS Valve: Yes
Inner Connection (in): 1/2" FNPT
Outer Connection (in): 1" MNPT
Body: Acrylic
O–Rings: Silastic
O-Rings: Viton (Needle Valves)
Connections: Polypropylene
Guide: 316L Stainless Steel
Float: 316L Stainless Steel
Maximum Pressure: 125 psi
Temperature Rating: 120°F
Accuracy: ± 5%
AXEON Part Number: 205105
