Sealcon

201292- CONNECTOR, MALE, WATER TIGHT, NEMA, 10-14MM, 1/2", SEALCON

Part #: 201292
Log in / Register

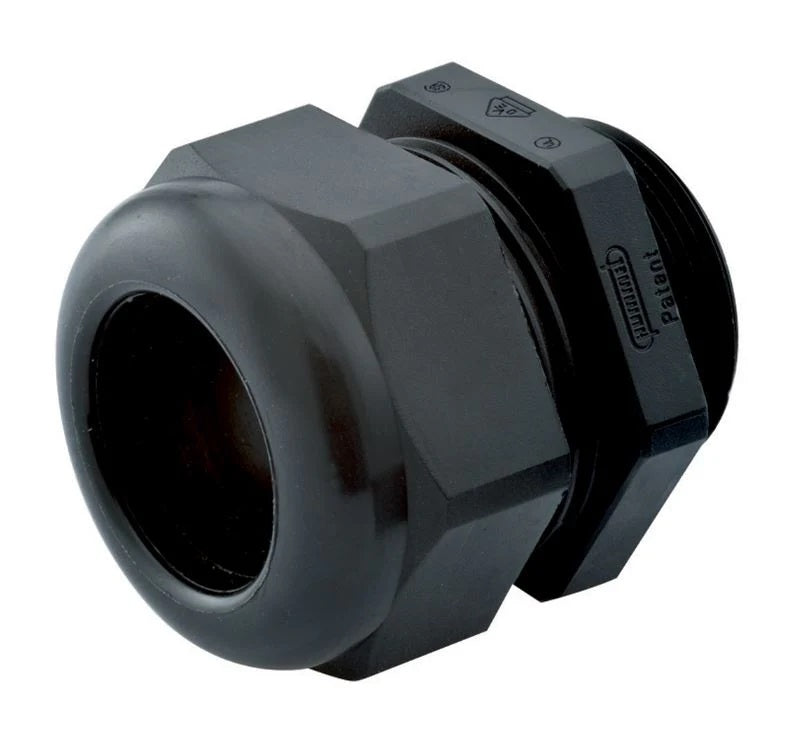

This Nylon Strain Relief (Cable Gland) with 1/2″ NPT Thread will provide your application with a product made of exceptional quality

  • Liquid Tight – Submersible to 300 ft
  • Highest Pressure Rating – Patented form seal guarantees 150 psig (10 bar)
  • Flame protected – V0 Rated according to UL 94Halogen- and Phosphorous free materials
  • Safety – Ratchet to prevent Dome from coming loose under vibration
  • Large Selection – Cable Range from .08″ (2mm) to 1.38″ (35mm)
  • Non-Corrosive – Resistant to salt water, weak acids, weak alkalis, alcohol, esters, ketones, ether, gasoline, mineral, animal & vegetable oil.
  • Durable – Rugged Construction
  • Environmentally compliant – RoHS & Deca BDE

Product Specifications:

  • Fittings: Nylon 6/6
  • Form Seal: Buna-N
  • Optional O-Ring: Buna-N, FPM or Silicone
  • Optional Seal Ring: Polyethylene or Fiber-Reinforced Plastic
  • Nylon 6/6: V0-rated - Flame resistant, halogen and phosphorous free, self-extinguishing, non-toxic, fungus resistant.
  • Colors: Black (RAL 9005)
  • Operating Temperature: -40C° to 100C° (-40°F to 212°F)
