200795- PUMP, MULTI-STAGE, 1.5 HP, 110/220V 1 PH, 10GBS151, GOULDS

Part #: 200795
Login / Register
*Due to availability of components, extended lead times may apply. Please check with Customer Support for availability.

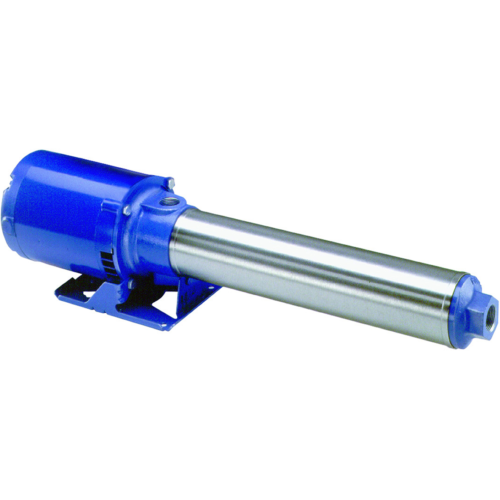

This Goulds 10GBC1514Q0 GB Series Pump is a multi-stage style pump that provides steady, quiet, vibration free operation with some level of portability. Glass-filled engineered composite material diffusers and fixed impellers have a high resistance to corrosion and abrasion. Viton o-ring provides reliable high pressure sealing with easy disassembly for maintenance or repair. Bowls have a 300 stainless steel rabbit lock for positive alignment with no gaskets required. Centrifugal pump design permits selection of flow within a range for variable capacity. Excellent for a variety of applications including:

  • Car wash, residential, commercial, or agricultural pressure wash
  • Reverse osmosis
  • Evaporative cooling systems/misters
  • Booster service
  • Spray systems
  • Water circulation
  • Filtration
  • HVAC
  • General purpose pumping
  • Item: Multi-Stage Booster Pump
  • Booster Pump Type: Multi-Stage Booster Pump
  • Model: 10GBS1514Q4
  • HP: 1/2 hp
  • Voltage: 110/220VAC 60Hz
  • Phase: 1
  • Outlet Size (in): 1" NPT
  • Inlet Size (in): 1" NPT
  • Max. suction (inlet) Pressure: 75 psi
  • Number of Stages: 15
  • Max. Flow Rate: 16 GPM
  • Housing Material: Stainless Steel
  • Motor Enclosure: TEFC
  • Pump Mounting Position: Horizontal
  • Impeller Material: Engineered Composite
  • Impeller Type: Closed
  • Max. Case Pressure: 300 psi
  • Max. Liquid Temp.: 160 Degrees F
  • Seal Material: Carbon, Ceramic, BUNA
  • Wetted Materials: Carbon, Sili-Carbide, Viton, 316SS
