200401- MEMBRANE, NF3, 2514, DRY AXEON

Part #: 200401
Login / Register

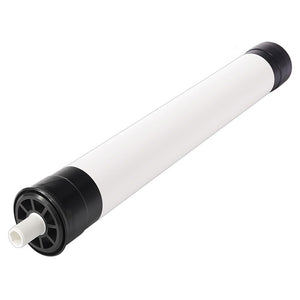

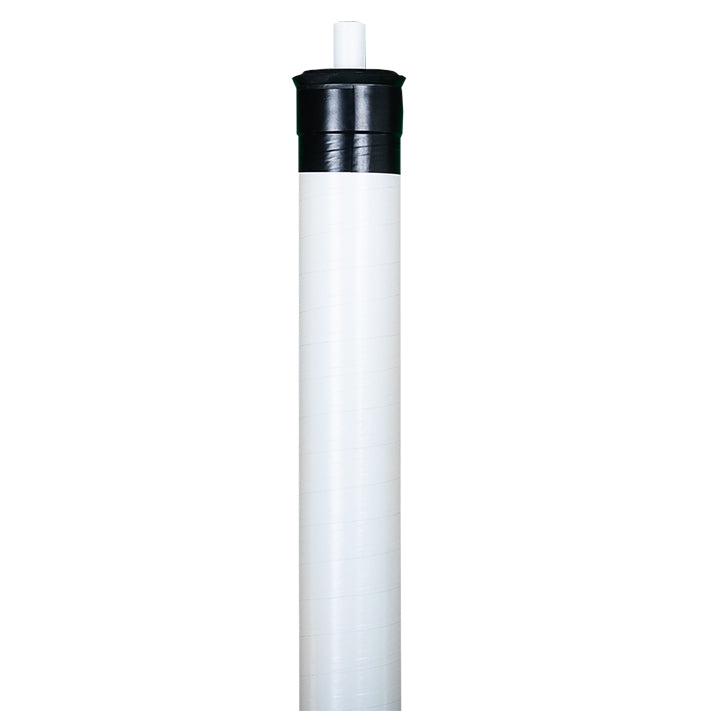

The AXEON NF3-2514 Nanofiltration Membrane is designed for selective separation in residential and light commercial water treatment applications requiring partial salt rejection with lower operating pressure than reverse osmosis. Utilizing advanced thin-film composite (TFC) nanofiltration technology, this membrane effectively reduces hardness, color, and organic compounds while allowing partial passage of monovalent salts to maintain balanced water chemistry.

Supplied in a dry-shipped configuration, the NF3-2514 offers extended shelf life and simplified storage prior to installation. Its compact 2.5″ × 14″ size makes it ideal for point-of-use systems, specialty filtration setups, and OEM equipment requiring efficient nanofiltration performance in a small footprint.



Features:

  • Nanofiltration membrane for selective ion removal
  • Dry-shipped for extended shelf life
  • Advanced thin-film composite (TFC) NF technology
  • Reduces hardness, color, and organic compounds
  • Allows partial passage of monovalent salts
  • Compact 2.5″ × 14″ membrane size
  • Designed for residential and light commercial applications

Description: NF3-2514

Applied Pressure (psi / bar): 70 / 4.83

Permeate Flow Rate (gpd / m³/d): 200 / 0.76

Nominal Salt Rejection %: 40 - 50

Membrane Type: Polyamide Thin-Film Composite

Maximum Operating Temperature (°F / °C): 113 / 45

Maximum Operating Pressure (psi / bar): 600 / 41

pH Range, Continuous Operation: 2 - 11

pH Range, Short Term Cleaning (30 Min.): 1 - 12

Maximum Feed Silt Density Index (SDI): 5

Chlorine / Chloramine Tolerance (ppm): 0

Maximum Feed Flow Rate (gpm): 6
