200091 - SYSTEM, FILTER, CARTRIDGE, FSD-210, 1" FNPT, AXEON
Couldn't load pickup availability

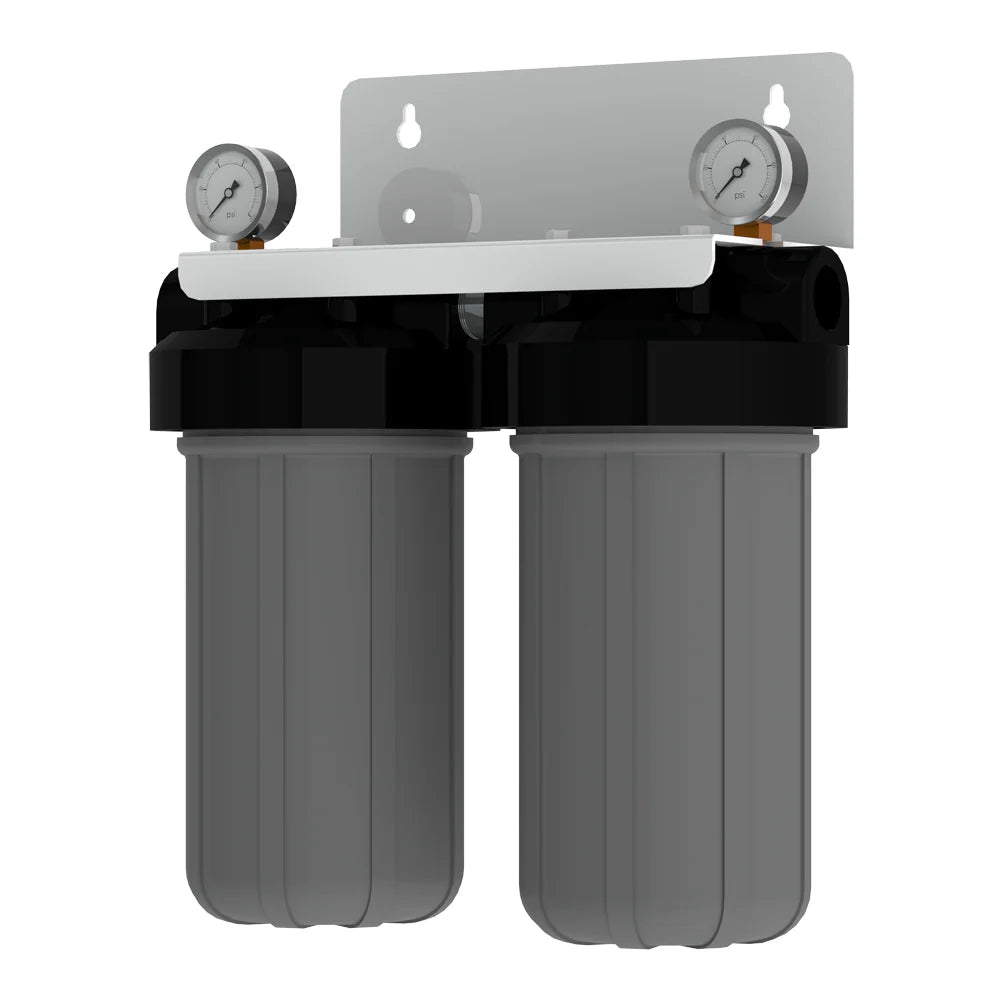

The AXEON FSD-210 Cartridge Filtration System is designed for efficient sediment and particulate reduction in residential, commercial, and light industrial water treatment applications. Featuring a dual-cartridge housing configuration, this system provides increased filtration capacity and extended service life compared to single-cartridge units.
Built with durable filter housings and 1″ FNPT inlet and outlet connections, the FSD-210 delivers reliable performance and easy cartridge replacement. It is commonly used as pre-filtration to protect downstream equipment such as reverse osmosis systems, softeners, UV units, and pumps.
(Note: Cartridges are sold separately)
Features:
- AXEON 0 – 100 psi Pressure Gauges
- One White Powder Coated Bracket
- Two 4.5” Diameter Grey and Black Pentair® Housings in 10” Lengths
- One Filter Housing Wrench
Model: FSD-210
Stages: 2
Housing Diameter (in): 4.5"
Housing Length (in): 10"
Port Connection (in): 1" FNPT
Housing Material: Polypropylene
Housing Cap Material: Polypropylene (HFPP)
O-Ring Material: Buna-N
Minimum Temperature: 40°F
Maximum Temperature: 100°F
Minimum Operating Pressure: 45 psi
Maximum Operating Pressure: 85 psi
