AXEON LC-750 RO System with three vertical filter cartridges, three pressure gauges, digital display, and flow meter for high-capacity commercial water purification

AXEON

209182- SYSTEM, RO, LC-750, 110V 60HZ 1PH, AXEON

Name: 209182- SYSTEM, RO, LC-750, 110V 60HZ 1PH, AXEON
Brand: AXEON
SKU: 209182 / 210275
Price: 6337.18 USD
Availability: InStock

Part #: 209182 / 210275

Product variants

Login / Register

Description

AXEON® LC–Series Reverse Osmosis Systems 110V are manufactured for light commercial applications and feature a compact space-saving design. The versatile design allows for either wall-mounted or freestanding operation. The LC–Series Systems come preassembled and ready for immediate online service with minimal set up and simple utility connections.

AXEON LC–Series Reverse Osmosis Systems have been engineered for capacities ranging from 750 to 1,500 gallons per day and feature a Fluid-O-Tech™ Low Lead Brass Rotary Vane Pump designed for enhanced performance.

Features:

White Powder Coated Steel Bracket
AXEON 2.5" x 20" 5-Micron Sediment Pre-Filter
AXEON 2.5" x 20" 10-Micron Carbon Block Pre-Filter (on LC – 750)
Pentair® 20" Slim Line Cartridge Housings
Fluid-O-Tech™ Low Lead Brass Rotary Vane High Pressure Pump
ODP High Efficiency Carbonator Motor
AXEON HF5 – Series Ultra Low Energy Membrane Elements

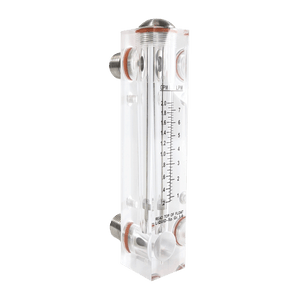

Permeate Flow Meter

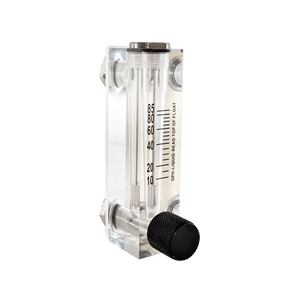

Concentrate Flow Meter with SS Integrated Needle Valve
Concentrate Recycle Flow Meter with SS Integrated Needle Valve

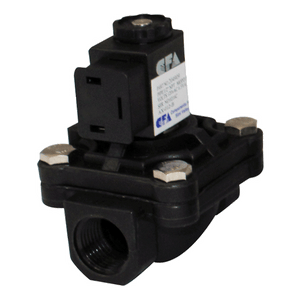

Feed Solenoid Valve
0-300 psi Pump Pressure Gauge
0-100 psi Post-Filter Pressure Gauge
0-100 psi Permeate Pressure Gauge
John Guest® Push/Pull Fittings with Locking Safety Clips

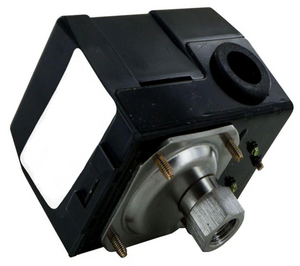

Low Pressure Switch for Pump Protection
Permeate High Pressure Switch

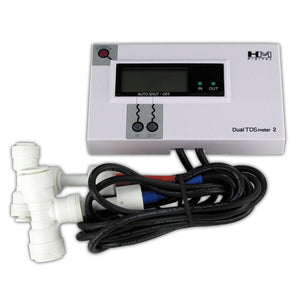

HM Digital® DM– 2 Dual TDS Meter
20" Floor Stand
Blending Valve

literature

videos

specifications

Specifications:

Model: LC-750
Capacity (gpd): 750

Design:

Configuration: Single Pass
Feedwater Source: TDS < 1,000 ppm
Standard Recovery Rate %: Up to 75

Flow Rates:

Permeate Flow (gpm): 0.52
Minimum Feed Flow (gpm): 2.22
Maximum Feed Flow (gpm): Up to 8

Connections:

Feed (in): 1/2" QC
Permeate (in): 3/8" QC
Concentrate (in): 3/8" QC

Membranes:

Membrane(s) Per Vessel: 1
Membrane Quantity: 1
Membrane Size: 3018
Nominal Salt Rejection %: 98

Vessels:

Vessel Array: 1
Vessel Quantity: 1

Pumps:

Pump Type: Rotary Vane 401 Low Lead Brass
Motor HP: 1/3
RPM @ 60Hz: 1725

System Electrical:

Standard Voltage + Amp Draw: 110V, 1 PH, 50 / 60Hz, 6.6A

Operating Limits:

Maximum Feed Temperature (°F / °C): 85 / 29
Minimum Feed Temperature (°F / °C): 40 / 4
Maximum Ambient Temperature (°F / °C): 120 / 49
Minimum Ambient Temperature (°F / °C): 40 / 4
Maximum Feed Pressure (psi / bar): 70 / 4
Minimum Feed Pressure (psi / bar): 40 / 3
Maximum Operating Pressure (psi / bar): 90 / 6
Maximum Feed Silt Density Index (SDI): < 3
Maximum Turbidity (NTU): 1
Maximum Free Chlorine (ppm): 0
Maximum TDS (ppm): Up to 1,000
Maximum Hardness (gpg): 1
Maximum pH (Continuous): 11
Minimum pH (Continuous): 2
Maximum pH (Cleaning 30 Minutes): 13
Minimum pH (Cleaning 30 Minutes): 1

Warranty:

1-Year Warranty
