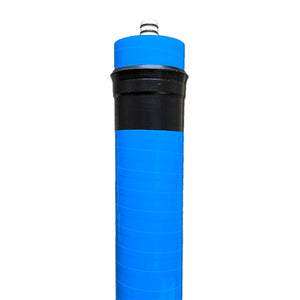

AXEON SE1-8040 NSF-61 Reverse Osmosis Membrane

Part #: 211692
Please Login / Sign Up

AXEON® SE1–Series Reverse Osmosis Membrane Elements offer superior rejection and flow rates for high salinity and high rejection applications. These membranes are fiberglass wrapped and feature high flow rates up to 9,000 gpd with 99.75% rejection. AXEON SE1–Series Membranes operate at lower than standard pressures to be more energy efficient.

Benefits:

  • High Rejection for Sea Water Applications
  • Fiberglass Wrapped for Enhanced Durability



Compatible with:


AXEON: SW1-8040
Filmtec: SW30HRLE-400
Hydranautics: SWC4B-MAX
Suez: AD-400, 34
Toray: TM820E-400, TM820M-400
LG: LG SW 400 GR
NSF-61 Certified Membrane

Specifications:

  • Description: SE1-8040
  • Applied Pressure (psi / bar): 800 / 55.16
  • Permeate Flow Rate (gpd / m³/d): 7500 / 6.81
  • Nominal Salt Rejection %: 99.75


Operating Limits:

  • Membrane Type: Polyamide Thin-Film Composite
  • Maximum Operating Temperature (°F / °C): 113 / 45
  • Maximum Operating Pressure (psi / bar): 1200 / 82.70
  • pH Range, Continuous Operaiton: 2 - 11
  • pH Range, Short Term Cleaning (30 Min.): 1 - 13
  • Maximum Feed Silt Density Index (SDI): 5
  • Chlorine / Chloramine Tolerance (ppm): 0
  • Maximum Feed Flow Rate (gpm): 75
