AXEON L1-200 RO System 110V

Part #: 207315
Log in / Register

AXEON® L1-Series Reverse Osmosis Systems are a cost–effective solution for light commercial reverse osmosis applications such as coffee, tea, food preparation, misting, hydroponics, detailing and more.

 AXEON L1-Series Reverse Osmosis Systems feature a compact wall mount space saving design and comes pre-assembled and ready for immediate service with simple utility connections. These systems are available in capacities of 200 and 300 gallons per day and feature a single pump design for reliable performance. Each model is engineered with quality AXEON components including fiberglass (FRP) membrane housings, extra low energy membranes, pressure gauges, filters and housings.



Features:

  • AXEON HF4 – Series Extra Low Energy Membrane Elements
  • AXEON FRP– Series 300E Fiberglass Membrane Housing
  • AXEON 5-Micron Sediment Pre-Filter

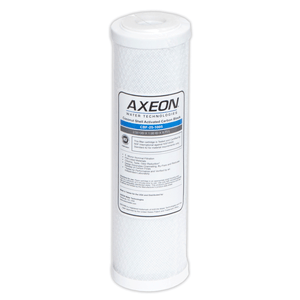

  • AXEON 10-Micron Carbon Block Pre-Filter and Post-Filter
  • Pentair® 10" Slim Line Cartridge Housings

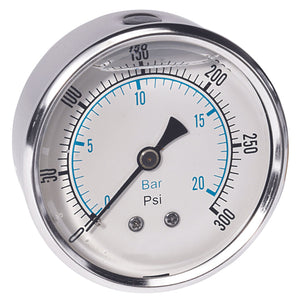

  • AXEON 0-300 psi Glycerin-Filled Pump Pressure Gauge

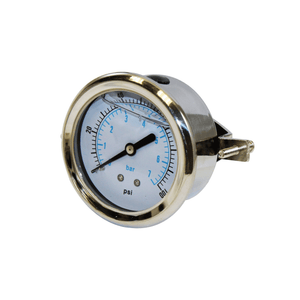

  • AXEON 0-100 psi Glycerin-Filled Pre-Filter Pressure Gauge
  • AXEON 0-100 psi Glycerin-Filled Permeate Pressure Gauge
  • Aquatec® Tank High Pressure Switch
  • Composite Feed Solenoid Valve
  • Aquatec Auto Flush Timer Valve
  • Aquatec High Flow Booster Pump
  • John Guest® Push/Pull Fittings with Locking Safety Clips





    Specifications:

    • Model: L1-200
    • AXEON Part Number: 207315
    • Capacity (gpd): 200


    Design:

    • Configuration: Single Pass
    • Feedwater Source: TDS <1,000 ppm
    • Standard Recovery Rate %: 40


    Rejection and Flow Rates:

    • Permeate Flow (gpm): 0.14
    • Minimum Feed Flow (gpm): 0.35
    • Minimum Concentrate Flow (gpm): 0.21
    • Nominal Salt Rejection %: 98.5


    Connections:

    • Feed (in): 3/8" QC
    • Permeate (in): 3/8" QC
    • Concentrate (in): 1/4" QC


    Membranes:

    • Membrane(s) Per Vessel: 1
    • Membrane Quantity: 1
    • Membrane Size: 2514


    Vessels:

    • Vessel Array: 1
    • Vessel Quantity: 1


    Pumps:

    • Pump Type: Aquatec 8800


    System Electrical:

    • Standard Voltage + Amp Draw: 110V, 60Hz, 1PH, 4.0A


    Operating Limits:

    • Maximum Feed Temperature (°F / °C): 85 / 29
    • Minimum Feed Temperature (°F / °C): 40 / 4
    • Maximum Ambient Temperature (°F / °C): 120 / 49
    • Minimum Ambient Temperature (°F / °C): 40 / 4
    • Maximum Feed Pressure (psi / bar): 85 / 6
    • Minimum Feed Pressure (psi / bar): 45 / 3
    • Maximum Operating Pressure (psi / bar): 110 / 7.5
    • Maximum Feed Silt Density Index (SDI): < 3
    • Maximum Turbidity (NTU): 1
    • Maximum Free Chlorine (ppm): 0
    • Maximum TDS (ppm): 1,000
    • Maximum Hardness (gpg): 1
    • Maximum pH (Continuous): 11
    • Minimum pH (Continuous): 2
    • Maximum pH (Cleaning 30 Minutes): 13
    • Minimum pH (Cleaning 30 Minutes): 1



    Warranty

    • 1-Year Manufacturer's Warranty
