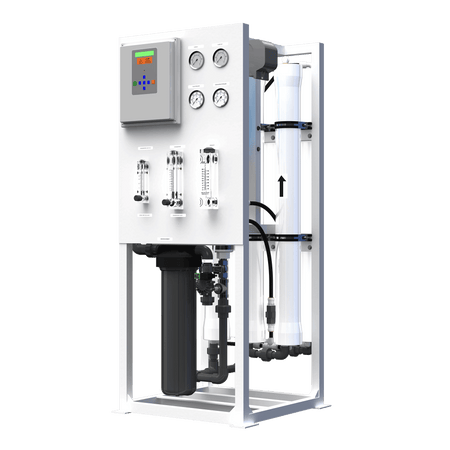

Test-Product-R1-6140
Couldn't load pickup availability
AXEON R1 – Series Reverse Osmosis Systems are designed for overall superior performance, high recovery rates, minimal energy consumption and offer great savings with low maintenance and operation costs.
R1 – Series Reverse Osmosis Systems feature a new, innovative design. These systems feature only the highest quality components, including a programmable computer controller with many built–in standard features, a stainless-steel booster pump for high performance and corrosion resistance, ultra-low energy membranes and fiberglass membrane housings for enhanced performance and durability.
R1 – Series Reverse Osmosis Systems have been engineered for capacities ranging from 1,800 – 21,600 gallons per day.
Benefits:
- Fully Equipped and Customizable
- Skid Mounted
- Decreased Size of Dimensional Footprint from Standard Reverse Osmosis Systems
- Components Easily Accessible
- Pre–Plumbed, Wired and Assembled
- Individually Tested and Preserved
- Low Operation and Maintenance Costs
- Easy Maintenance and Servicing
- 20% Less Energy Use than Standard Reverse Osmosis Systems
- 1–Year Limited Warranty
| Membrane Vessel Options | ||
|---|---|---|
| 204988 | Test-Option, R1-6140 Membrane Pressure Vessel Upgrade, 304 Stainless Steel 4040 |  |
| Instrumentation Options | ||
|---|---|---|
| 204989 | Test-Option, R1-6140, Hanna BL 941411 pH Controller | |
| 204994 | Test-Option, R1-6140, Blending Valve | |
| Safety Options | ||
|---|---|---|
| 204993 | Test-Option, R1-6140, Pressure Relief Valve, CE Compliant | |
| Packaging Options | ||
|---|---|---|
| 204996 | Test-Option, R1-6140, Wood Shipping Crate | |
Specifications:
- Model: R1-6140
- AXEON Part Number: 204966
Design:
- Configuration: Single Pass
- Feedwater Source: TDS < 2,000 ppm
- Standard Recovery Rate %: 56 (Up to 75%)
Flow Rates:
- Permeate Flow (gpd / lpd): 10,800 / 40,882
- Permeate Flow (gpm / lpm): 7.50 / 28.39
- Minimum Concentrate Flow (gpm / lpm): 6 / 22.71
- Concentrate Recycle Flow (gpm / lpm): Up to 5 / 18.93
Connections:
- Feed (in): 1 FNPT
- Permeate (in): 1 FNPT
- Concentrate (in): 1 FNPT
Membranes:
- Membrane(s) Per Vessel: 1
- Membrane Quantity: 6
- Membrane Size: 4040
- Nominal TDS Rejection %: 98.5
Vessels:
- Vessel Array: 2:2:2
- Vessel Quantity: 6
Pumps:
- Pump Type: Multi-Stage
- Motor HP: 3
- RPM @ 60Hz: 3450
System Electrical:
- Standard Voltage + Amp Draw: 220V, 60Hz, 1PH, 16A
Operating Limits:
- Maximum Feed Temperature (°F / °C): 85 / 29
- Minimum Feed Temperature (°F / °C): 40 / 4
- Maximum Ambient Temperature (°F / °C): 120 / 49
- Minimum Ambient Temperature (°F / °C): 40 / 4
- Maximum Feed Pressure (psi / bar): 85 / 6
- Minimum Feed Pressure (psi / bar): 45 / 3
- Maximum Operating Pressure (psi / bar): 200 / 14
- Maximum Feed Silt Density Index (SDI): < 3
- Maximum Turbidity (NTU): 1
- Maximum Free Chlorine (ppm): 0
- Maximum TDS (ppm): Up to 2,000
- Maximum Hardness (gpg): 0
- Maximum pH (Continuous): 11
- Minimum pH (Continuous): 2
- Maximum pH (Cleaning 30 Minutes): 13
- Minimum pH (Cleaning 30 Minutes): 1
Warranty:
- 1-Year Warranty
